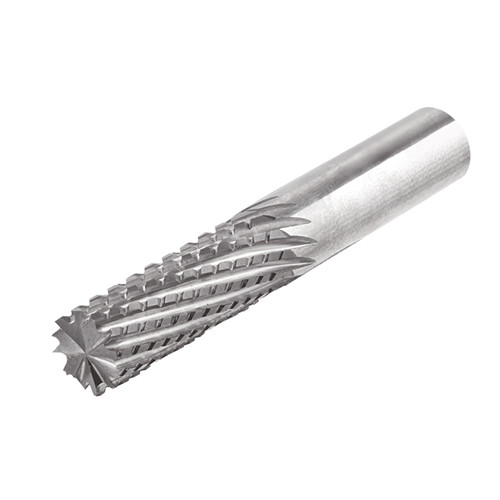

EPN-F10 06-19C06F57 IC02
Solid endmills with a special edge configuration for machining different types of composite materials.
| Cutting Diameter (DC) | 6 mm | Corner Radius (RE) | 0 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 19 mm | Grade | IC02 |
| Overall Length (OAL) | 57 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.03 mm/tooth |
| Coating | Uncoated | Minimum Feed per Tooth (fz(min)) | 0.02 mm/tooth |
| Flute Count (NOF) | 10 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 15 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 19 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | e8 |
| Application | | Edging | Helical Interpolation | Shouldering | Slotting | | Unit | M |
Product Features
| Family Description | Solid endmills with a special edge configuration for machining different types of composite materials. | FamilyName | EPN-F |
| Remarks | Coated tools available on request | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0250
Name
Square & Corner Radius End Mills
FamilyName
EPN-F
BrandName
Iscar
