EPNCI-C10 250-750C250F2.5 IC02
Solid carbide endmill with special cutting edges, for machining different composite materials at high stock removal rartes.Enables application of high feed and speed due to excellent chip and heat disposal.

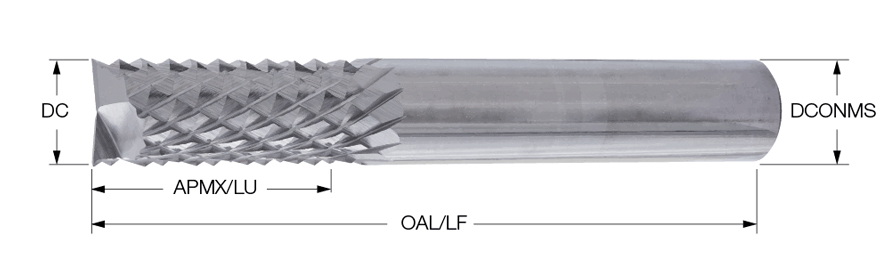

| Cutting Diameter (DC) | 1/4″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Grade | IC02 |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Solid Carbide Roughers |
| Overall Length (OAL) | 2″ | Maximum Feed per Tooth (fz(max)) | 0.0031 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.0008 ″/tooth |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 10 | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.25″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 3/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Counter Boring | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | e8 |
| Corner Radius (RE) | 0″ | Unit | I |
Product Features
| Family Description | Solid carbide endmill with special cutting edges, for machining different composite materials at high stock removal rartes.Enables application of high feed and speed due to excellent chip and heat disposal. | FamilyName | EPNCI |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0661
Name
Square & Corner Radius End Mills
FamilyName
EPNCI
BrandName
Iscar
