| Cutting Diameter (DC) | 10 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 22 mm | Body Half Taper Angle (BHTA) | 0 Degrees |
| Overall Length (OAL) | 72 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.09 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Chamfer | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 22 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | M |
| Corner Chamfer Width (CHW) | 0.4 mm |
Product Features

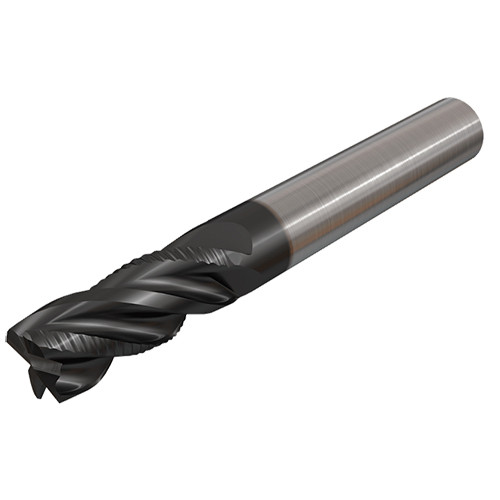

| Family Description | Combination of roughing and finishing solid carbide endmill in a single tool. 4 variable pitch flutes, 38° Helix, medium length. Provides finish surface at rough machining parameters. Reduces vibrations at high load applications. | FamilyName | EFS-E44 |
| Remarks | Minimum width of cut for semi-finishing operation >= 0.05 x DC | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0770
Name
Square & Corner Radius End Mills
FamilyName
EFS-E44
BrandName
Iscar
