ECAI-B-2 1.0-1.5-C1.0 IC08

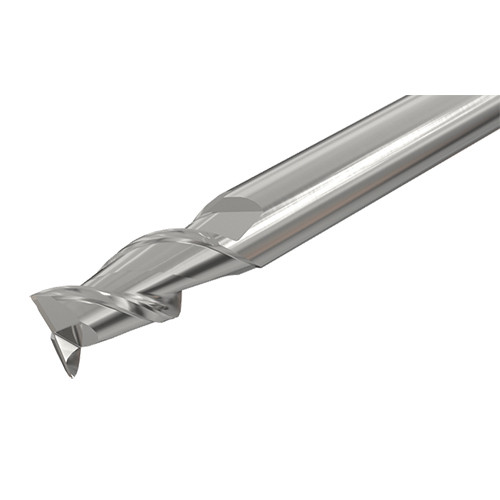

2 flute, 45° helix, medium length, solid carbide endmills. Used for machining aluminum.

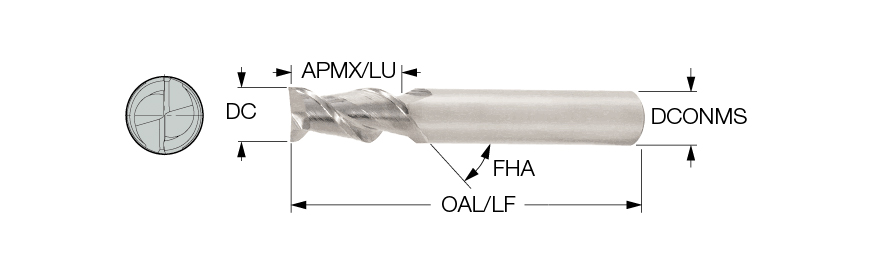

| Cutting Diameter (DC) | 1″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1″ | Grade | IC08 |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Tool Type | Solid carbide center cutting endmills 90° |
| Overall Length (OAL) | 5″ | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Decimal Equivalent | 1″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 1-1/2″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | h6 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | I |
| Corner Radius (RE) | 0″ |
Product Features
| Family Description | 2 flute, 45° helix, medium length, solid carbide endmills. Used for machining aluminum. | FamilyName | ECAI-B-2 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.7350
Name
Square & Corner Radius End Mills
FamilyName
ECAI-B-2
BrandName
Iscar
