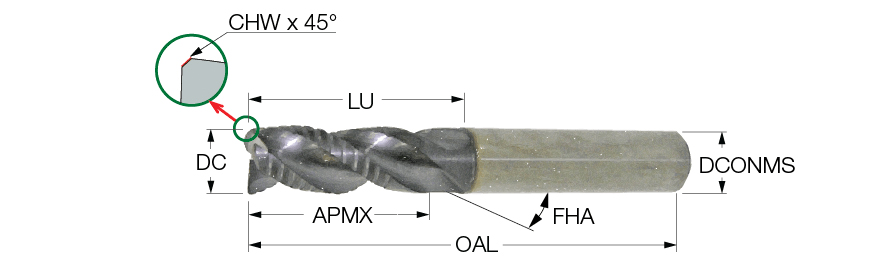

| Cutting Diameter (DC) | 10 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 22 mm | Neck Diameter (DN) | 9.8 mm |
| Overall Length (OAL) | 72 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.09 mm/tooth |
| Flute Count (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Helix Angle (FHA) | 38 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Chamfer | Measurement Type | Metric |
| Usable Length (LU) | 32 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | e8 |
| Corner Chamfer Width (CHW) | 0.4 mm | Unit | M |
Product Features

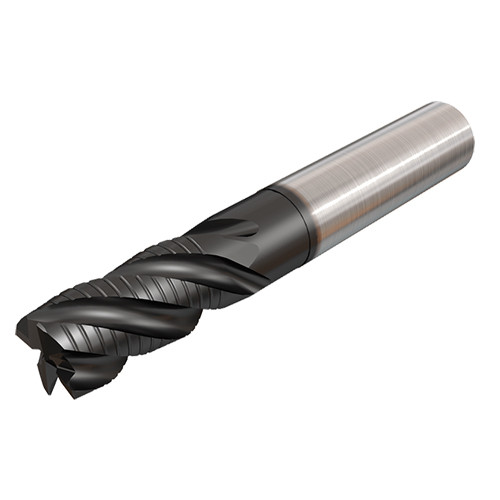

| Family Description | 4 flute, 38° helix medium length solid carbide roughing endmills with chip splitting cutting edges for high stock removal rates. Used for machining stainless steel and high temperature alloys. | FamilyName | ECP-E4L |
| Remarks | Most recommended for machining stainless steel. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0698
Name
Square & Corner Radius End Mills
FamilyName
ECP-E4L
BrandName
Iscar
