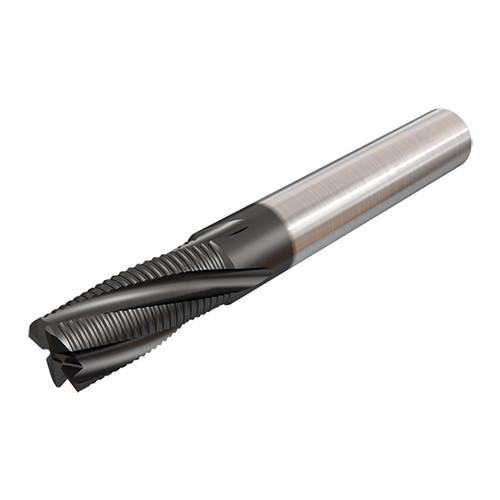

ECR-T4M 08-16-W08-63 IC900
4 flute, 20° helix medium length Solid carbide roughing endmills. Used for high stock removal rates on high temperature alloys (PH).

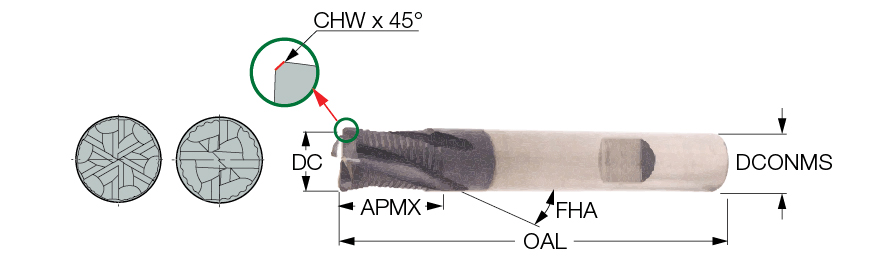

| Cutting Diameter (DC) | 8 mm | Corner Chamfer Width (CHW) | 0.4 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 16 mm | Grade | IC900 |
| Overall Length (OAL) | 63 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 20 Degrees | Body Material | Carbide |
| Shank Type | Weldon | Measurement Type | Metric |
| End Shape | Chamfer | Connection Code Machine Side (CCMS) | Weldon |
| Usable Length (LU) | 16 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e9 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | M |
Product Features
| Family Description | 4 flute, 20° helix medium length Solid carbide roughing endmills. Used for high stock removal rates on high temperature alloys (PH). | FamilyName | ECR-T-M |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0440
Name
Square & Corner Radius End Mills
FamilyName
ECR-T-M
BrandName
Iscar
