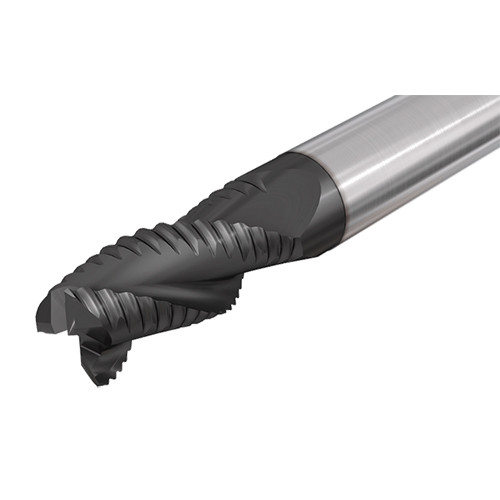

ERC200E38-3W20 IC08
3 flute, 38° helix medium length solid carbide roughing endmills. Used for maximum stock removal on aluminum and other nonferrous materials.

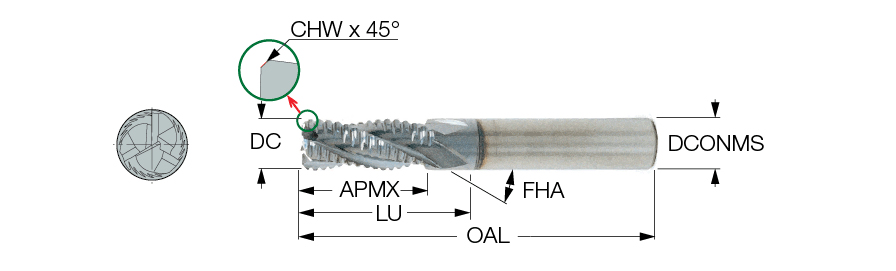

| Cutting Diameter (DC) | 20 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Grade | IC08 |
| Depth of Cut Maximum (APMX) | 38 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 104 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Coating | Uncoated | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Weldon | Measurement Type | Metric |
| End Shape | Chamfer | Connection Code Machine Side (CCMS) | Weldon |
| Usable Length (LU) | 55 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | h6 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | M |
| Corner Chamfer Width (CHW) | 0.7 mm |
Product Features
| Family Description | 3 flute, 38° helix medium length solid carbide roughing endmills. Used for maximum stock removal on aluminum and other nonferrous materials. | FamilyName | ERC-E-3 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.4050
Name
Square & Corner Radius End Mills
FamilyName
ERC-E-3
BrandName
Iscar
