‎ECI-E-3 375-750-W375 IC900

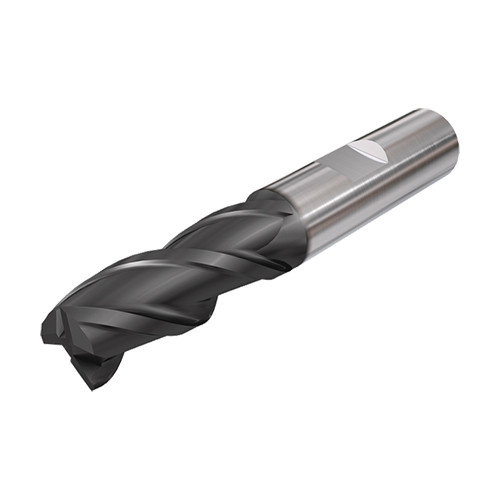

3 flute, 38° helix, medium length, solid carbide endmills.
SOLIDMILL Premium
Item # ISC5620896
Brand: Iscar
Mfr#: 5620896
Quantity Available
loading...
Cutting Diameter (DC) 3/8″ Corner Radius (RE) 0″
Connection Diameter Machine Side (DCONMS) 3/8″ Ramping Angle Maximum (RMPX) 5 Degrees
Depth of Cut Maximum (APMX) 3/4″ Grade IC900
Overall Length (OAL) ‎2-1/2″ Tool Type Solid carbide center cutting endmills 90°
Cutting Edge Material Carbide Maximum Feed per Tooth (fz(max)) 0.004 ″/tooth
Coating AlTiN Minimum Feed per Tooth (fz(min)) 0.001 ″/tooth
Flute Count (NOF) 3 Coolant Supply Property (CSP) External
Flute Helix Angle (FHA) 38 Degrees Body Material Carbide
Shank Type Weldon Decimal Equivalent 0.375″
End Shape Corner Radius Measurement Type Inch
Usable Length (LU) 3/4″ Connection Code Machine Side (CCMS) Weldon
Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Shank Diameter Tolerance (TCDMM) h6
Application | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | Unit I
‎ECI-E-3 375-750-W375 IC900

Product Features

Family Description 3 flute, 38° helix, medium length, solid carbide endmills. FamilyName ECI-E-3
Remarks Multi-purpose endmill. Suitable for deep slotting. BrandName Iscar
COO Korea

Shipping Info

Weight per item
0.1587
Name
Square & Corner Radius End Mills
FamilyName
ECI-E-3
BrandName
Iscar
