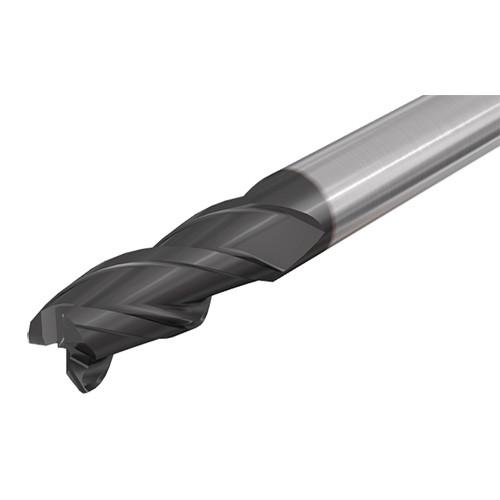

EC160E32-3W16 IC900
3 flute, 38° helix medium length solid carbide endmills.

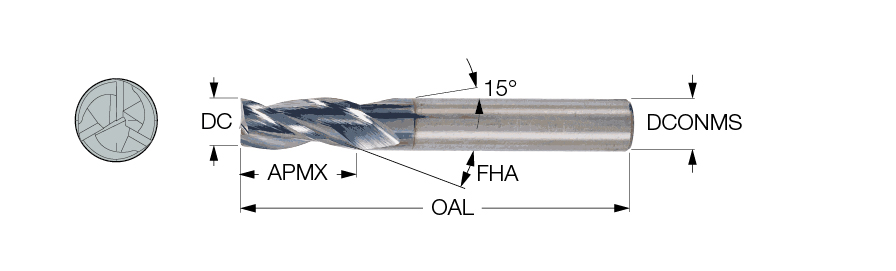

| Cutting Diameter (DC) | 16 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Grade | IC900 |
| Depth of Cut Maximum (APMX) | 32 mm | Body Half Taper Angle (BHTA) | 0 Degrees |
| Overall Length (OAL) | 92 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.13 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Weldon | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Weldon |
| Usable Length (LU) | 32 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | M |
| Corner Radius (RE) | 0 mm |
Product Features
| Family Description | 3 flute, 38° helix medium length solid carbide endmills. | FamilyName | EC-E-3 |
| Remarks | Multi-purpose endmill. Suitable for deep slotting. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2280
Name
Square & Corner Radius End Mills
FamilyName
EC-E-3
BrandName
Iscar
