ECPI-H7R 312-1.8C030CF4 IC902

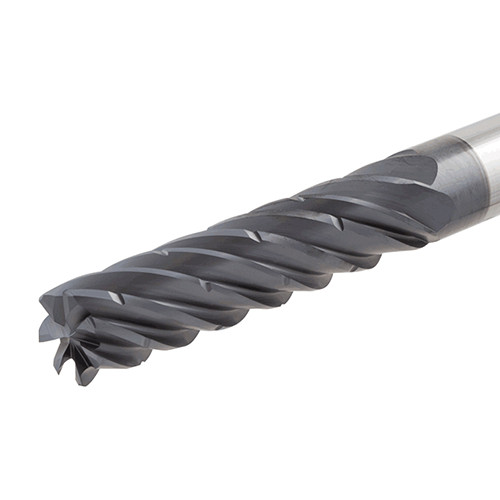

CHATTERFREE 7 flute solid carbide roughing endmills with 35-37° different helix and long chip splitting cutting edges for high stock removal rates. Mainly for machining stainless steel and high temperature alloys.
| Cutting Diameter (DC) | 0.312″ | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.312″ | Grade | IC902 |
| Depth of Cut Maximum (APMX) | 1.8″ | Tool Type | HSK |
| Overall Length (OAL) | 4″ | Maximum Feed per Tooth (fz(max)) | 0.0035 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.0012 ″/tooth |
| Coating | TiAlN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 7 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 37 Degrees | Decimal Equivalent | 0.312″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 1.8″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e9 |
| Application | | Counter Boring | Plunging & Recessing | Shouldering | | Unit | I |
| Corner Radius (RE) | 0.03″ |
Product Features
| Family Description | CHATTERFREE 7 flute solid carbide roughing endmills with 35-37° different helix and long chip splitting cutting edges for high stock removal rates. Mainly for machining stainless steel and high temperature alloys. | FamilyName | ECPI-H7-CF |
| COO | Israel | BrandName | Iscar |
Shipping Info
Name
Square & Corner Radius End Mills
FamilyName
ECPI-H7-CF
BrandName
Iscar
