EBI-6 250-500C125VF2 IC608
6 flute, ball nose endmills with and without relieved necks

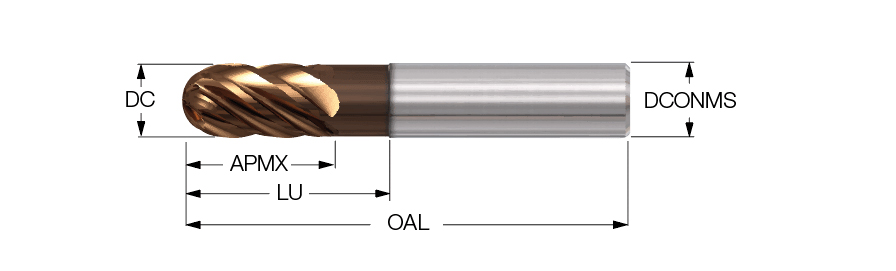

| Cutting Diameter (DC) | 1/4″ | Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 1/8″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 2″ | Grade | IC608 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide non center cutting endmills 90° |
| Coating | AlTiCrSiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.25″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1/2″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
Product Features
| Family Description | 6 flute, ball nose endmills with and without relieved necks | FamilyName | EBI-6-VF |
| COO | USA | BrandName | Iscar |
Shipping Info
Name
Square & Corner Radius End Mills
FamilyName
EBI-6-VF
BrandName
Iscar
