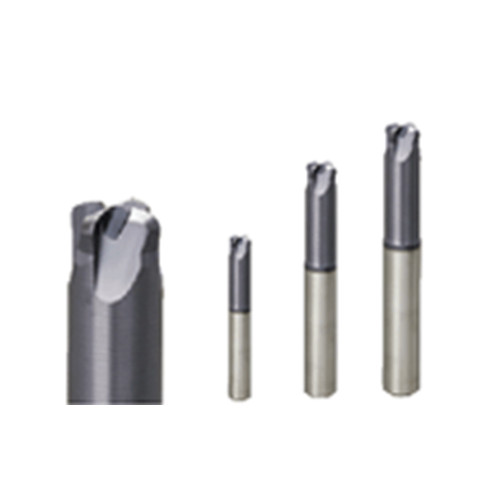

EFFI-S6-500 137/1.30C500M IC902
High productivity solid carbide endmills. For cast iron, alloy and hardened steel up to 65 HRc, stainless steel, titanium, stainless steel, titanium and nickel based alloys.

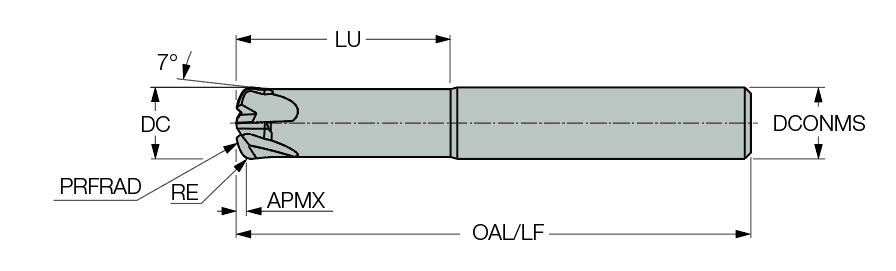

| Cutting Diameter (DC) | 1/2″ | Grade | IC902 |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Neck Diameter (DN) | 0.48″ |
| Depth of Cut Maximum (APMX) | 0.028″ | Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 3″ | Tool Type | Fast Feed Solid Endmill |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.018 ″/tooth |
| Coating | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.006 ″/tooth |
| Flute Count (NOF) | 6 | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Decimal Equivalent | 0.5″ |
| Usable Length (LU) | 1.3″ | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Drill Mill | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
| Corner Radius (RE) | 0.051″ | Cutting Diameter Tolerance | e9 |
| Ramping Angle Maximum (RMPX) | 5 Degrees | Unit | I |
Product Features
| Family Description | High productivity solid carbide endmills. For cast iron, alloy and hardened steel up to 65 HRc, stainless steel, titanium, stainless steel, titanium and nickel based alloys. | FamilyName | EFFI-S4/S6 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.2976
Name
Square & Corner Radius End Mills
FamilyName
EFFI-S4/S6
BrandName
Iscar
