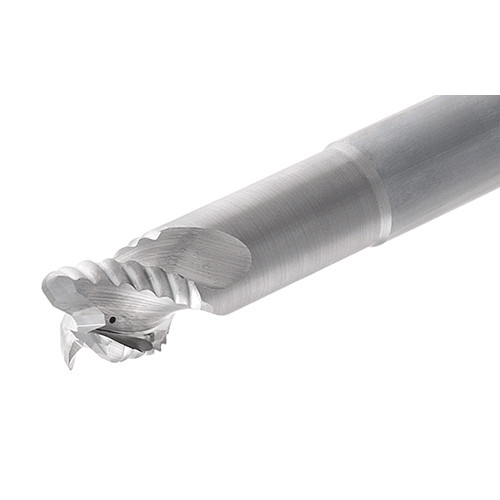

ECR-B316-14/60C16R.2A109C IC08
3 flute, 45° helix solid carbide roughing endmills with coolant channels directed to each cutting edge. Used for high stock removal rates on aluminum.
| Cutting Diameter (DC) | 16 mm | Ramping Angle Maximum (RMPX) | 20 Degrees |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Grade | IC08 |
| Depth of Cut Maximum (APMX) | 14 mm | Neck Diameter (DN) | 14.95 mm |
| Overall Length (OAL) | 109 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | Uncoated | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Flute Helix Angle (FHA) | 45 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 60 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | h6 |
| Corner Radius (RE) | 0.2 mm | Unit | M |
Product Features
| Family Description | 3 flute, 45° helix solid carbide roughing endmills with coolant channels directed to each cutting edge. Used for high stock removal rates on aluminum. | FamilyName | ECR-B3-R-C |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.2900
Name
Square & Corner Radius End Mills
FamilyName
ECR-B3-R-C
BrandName
Iscar
