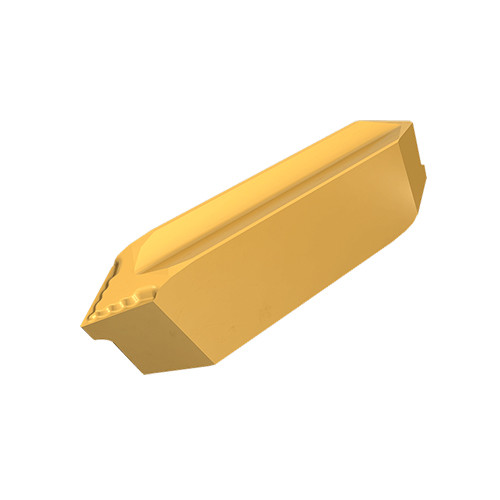

TIP 4WT-0.15 IC08
Precision ground double-ended threading inserts with a 55° partial profile and a chipformer.

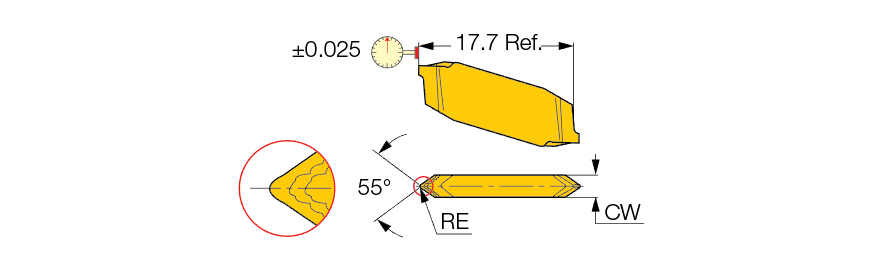

| Thread Standard | THFT | | Cutting Edge Length (L) | 15.3 mm |
| Corner Radius (RE) | 0.15 mm | Profile Included Angle (PNA) | 55 Degrees |
| Cutting Width (CW) | 4 mm | Tool Type | Threading Regular Inserts |
| Grade | IC08 | Threads per Inch Maximum (TPIX) | 19 |
| Coating | Uncoated | Threads per Inch Minimum (TPIN) | 7 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Threading (Ext.) Groove Turn T | Threading (Int.) | | Thread Form Type (THFT) | VP55 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Unit | M |
| Thread Pitch Maximum (TPX) | 3.63 mm |
Product Features
| Family Description | Precision ground double-ended threading inserts with a 55° partial profile and a chipformer. | FamilyName | TIP-WT |
| Remarks | Toolholder seat needs to be modified according to insert profile to ensure clearance. Internal & External tolerance: B.S.84 Medium class | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0059
Name
On-Edge Threading Indexable Inserts
FamilyName
TIP-WT
BrandName
Iscar
