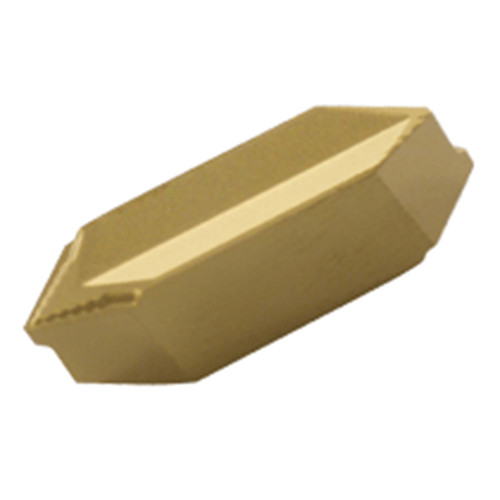

TIP 2MT-0.14 IC08
Precision ground 60° partial profile, double-ended threading inserts. TIP-MT - with a chipformer, TIP A-MT -without chipformer for short chipping materials.
| Thread Standard | THFT | | Thread Pitch Maximum (TPX) | 2 mm |
| Corner Radius (RE) | 0.14 mm | Cutting Edge Length (L) | 15.3 mm |
| Cutting Width (CW) | 2.4 mm | Profile Included Angle (PNA) | 60 Degrees |
| Grade | IC08 | Tool Type | Groove-Turn Precision Inserts |
| Coating | Uncoated | Threads per Inch Maximum (TPIX) | 24 |
| Cutting Edge Material | Carbide | Threads per Inch Minimum (TPIN) | 12 |
| Cutting Direction (HAND) | Neutral | Measurement Type | Metric |
| Application | | Threading (Ext.) Groove Turn T | Threading (Int.) | | Body Material | Carbide |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Thread Form Type (THFT) | VP60 |
| Thread Pitch Minimum (TPN) | 1 mm | Unit | M |
Product Features

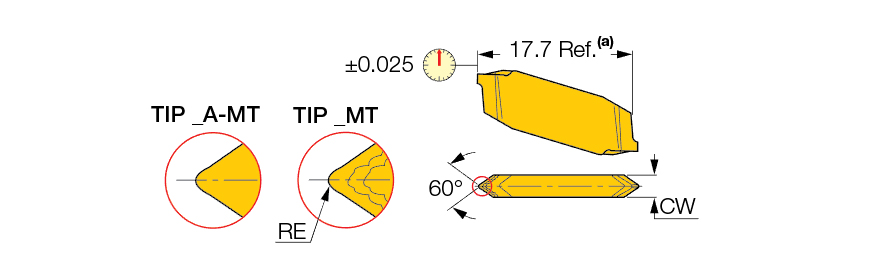

| Family Description | Precision ground 60° partial profile, double-ended threading inserts. TIP-MT - with a chipformer, TIP A-MT -without chipformer for short chipping materials. | FamilyName | TIP-MT |
| Remarks | (a) TIP inserts are 1.6 mm longer than GIP in the same pocket. Toolholder seat needs to be modified according to insert profile to ensure clearance. DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0045
Name
On-Edge Threading Indexable Inserts
FamilyName
TIP-MT
BrandName
Iscar
