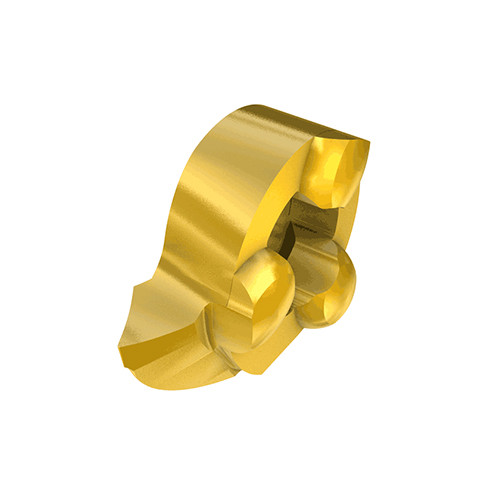

GIQR 8-WT-0.05 IC528
Internal inserts with Whitworth partial profile for threading in 8 mm and larger holes. CHAMGROOVE - part of the CHAMELEON multifunction system.

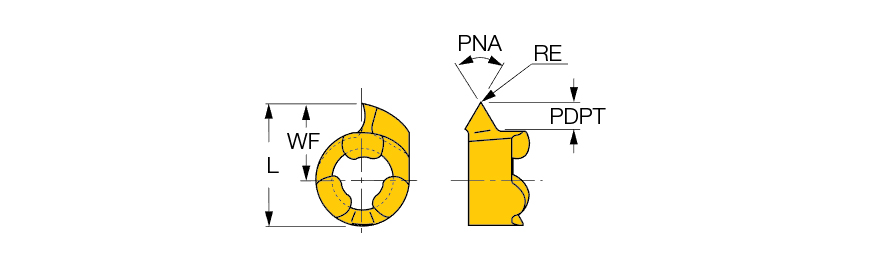

| Thread Standard | THFT | | Profile Included Angle (PNA) | 55 Degrees |
| Corner Radius (RE) | 0.05 mm | Tool Type | Groove-Turn Precision Inserts |
| Grade | IC528 | Threads per Inch Maximum (TPIX) | 50 |
| Coating | TiCN+TiN | Threads per Inch Minimum (TPIN) | 16 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Application | | Threading (Int.) | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Thread Form Type (THFT) | VP55 |
| Cutting Edge Length (L) | 7.78 mm | Unit | M |
Product Features
| Family Description | Internal inserts with Whitworth partial profile for threading in 8 mm and larger holes. CHAMGROOVE - part of the CHAMELEON multifunction system. | FamilyName | GIQR/L-WT |
| Remarks | Can be used for thread milling by circular interpolation TPI min D/5.9 D-diameter of thread (pitch max<=W) | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0020
Name
On-Edge Threading Indexable Inserts
FamilyName
GIQR/L-WT
BrandName
Iscar
