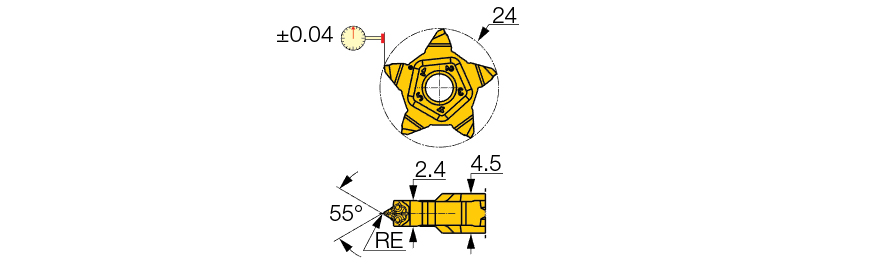

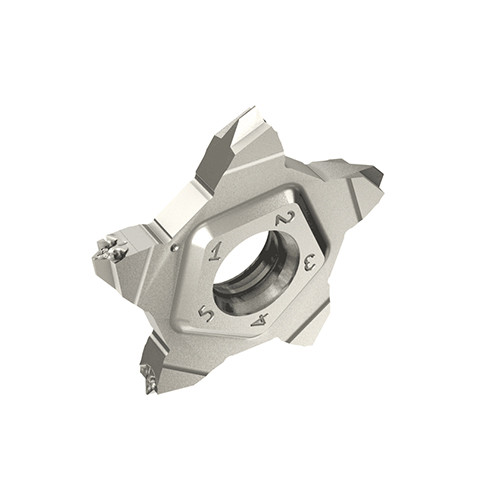

PENTA 24-14-BSPT IC908
Precision ground BSPT (British Standard Pipe), full profile, pentagonal, external threading inserts with a chipformer for general applications. Applications: steam, gas and water pipes.
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 14 | Profile Included Angle (PNA) | 55 Degrees |
| Corner Radius (RE) | 0.22 mm | Tool Type | Groove-Turn Precision Inserts |
| Grade | IC908 | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | BSPT55 |
| Cutting Direction (HAND) | Neutral | Unit | M |
| Application | | Threading (Ext.) Groove Turn T | Threading Between Walls | |
Product Features
| Family Description | Precision ground BSPT (British Standard Pipe), full profile, pentagonal, external threading inserts with a chipformer for general applications. Applications: steam, gas and water pipes. | FamilyName | PENTA 24-BSPT |
| Remarks | DMIN(inch)=5.435/TPI | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0112
Name
On-Edge Threading Indexable Inserts
FamilyName
PENTA 24-BSPT
BrandName
Iscar
