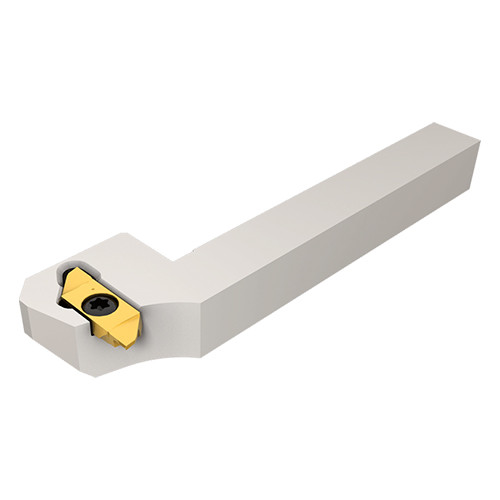

Y-SCHR 16-22BF
Y-axis screw lock integral tools carrying SWISSCUT inserts for grooving and turning on Swiss-Type machines.

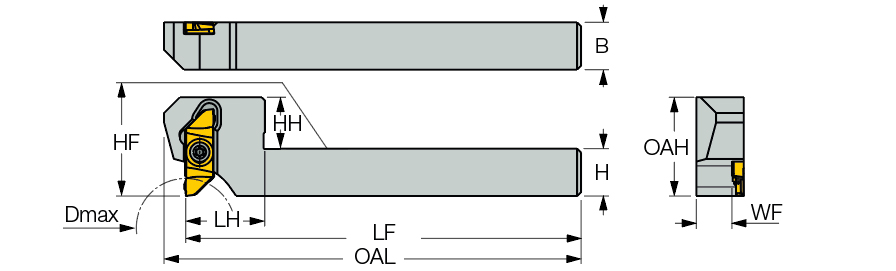

| Shank Height (H) | 16 mm | Application | | Ext. Back Turning | Ext. Grooving | Ext. Grooving & Turning | Ext. Turning | Parting | Threading (Ext.) Groove Turn T | Y Axis Groove Turn for Swiss | |
| Shank Width (B) | 16 mm | Body Material | Steel |
| Functional Width (WF) | 13 mm | Tool Type | Turn-Groove Tools |
| Head Length (LH) | 20 mm | Measurement Type | Metric |
| Overall Length (OAL) | 130.5 mm | Unit | M |
Product Features
| Family Description | Y-axis screw lock integral tools carrying SWISSCUT inserts for grooving and turning on Swiss-Type machines. | FamilyName | Y-SCHR-22BF |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.2940
Name
Groove/Turn Indexable Holders
FamilyName
Y-SCHR-22BF
BrandName
Iscar
