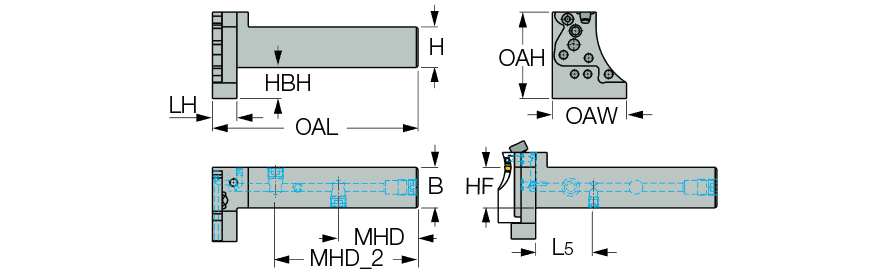

| Shank Height (H) | 1″ | Tool Type | Square Shanks |
| Shank Width (B) | 1″ | Measurement Type | Inch |
| Head Length (LH) | 0.591″ | Head Bottom Offset Height (HBH) | 0.748″ |
| Overall Length (OAL) | 4.724″ | Unit | I |
| Body Material | Steel |
Product Features
| Family Description | Holders with high-pressure coolant channels for MODULAR-GRIP perpendicularly mounted adapters. | FamilyName | MAHPR/L-XL-JHP |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.8012
Name
Groove/Turn Indexable Holders
FamilyName
MAHPR/L-XL-JHP
BrandName
Iscar
