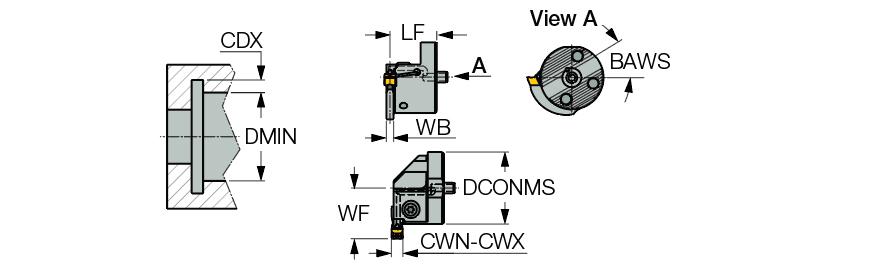

| Cutting Width Minimum (CWN) | 3 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Width Maximum (CWX) | 4.5 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Cutting Depth Maximum (CDX) | 5 mm | Body Material | Steel |
| Body Width (WB) | 2.5 mm | Tool Type | Indexable Turn & Groov Tools |
| Minimum Bore Diameter (DMIN) | 39 mm | Measurement Type | Metric |
| Functional Width (WF) | 22 mm | Unit | M |
Product Features

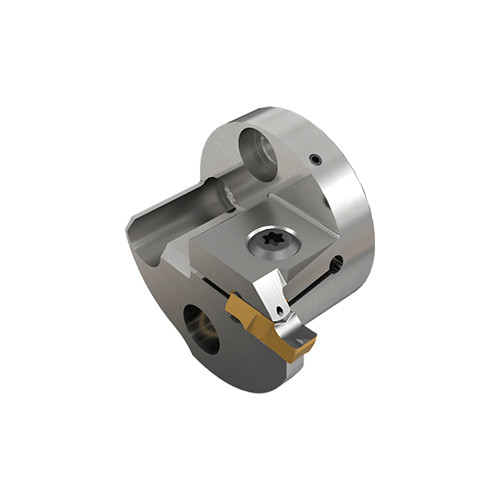

| Family Description | Internal grooving turning and threading adapters for GIPI, GIFI and GIMIY inserts. | FamilyName | AVC-GAIR/L |
| Remarks | When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance Using the adapters with CAMFIX & SH-D holders is possible in case the machine has an option to rotate the holders | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1120
Name
Groove/Turn Indexable Holders
FamilyName
AVC-GAIR/L
BrandName
Iscar
