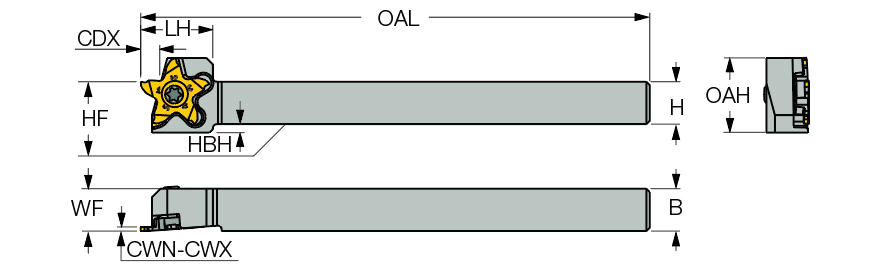

| Cutting Width Minimum (CWN) | 0.01″ | Head Length (LH) | 0.669″ |
| Cutting Width Maximum (CWX) | 1/8″ | Overall Length (OAL) | 4.724″ |
| Cutting Depth Maximum (CDX) | 0.157″ | Application | | Ext. Back Turning | Ext. Grooving | Parting | Threading (Ext.) Groove Turn T | |
| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Measurement Type | Inch |
| Functional Width (WF) | 1″ | Unit | I |
Product Features

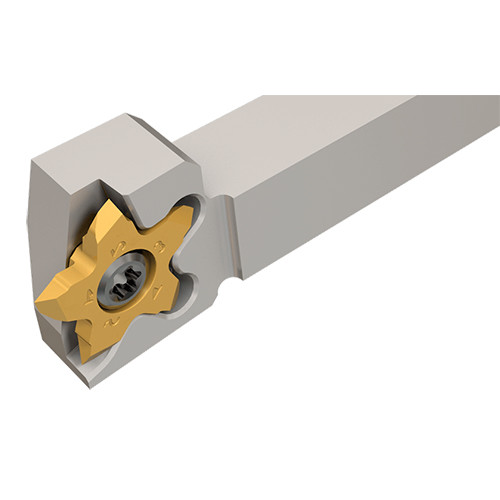

| Family Description | Tools carrying PENTACUT-17 inserts (with 5 cutting edges) for grooving, parting, and recessing next to high shoulders on small diameter parts. | FamilyName | PCHRS/LS-17 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.4110
Name
Groove/Turn Indexable Holders
FamilyName
PCHRS/LS-17
BrandName
Iscar
