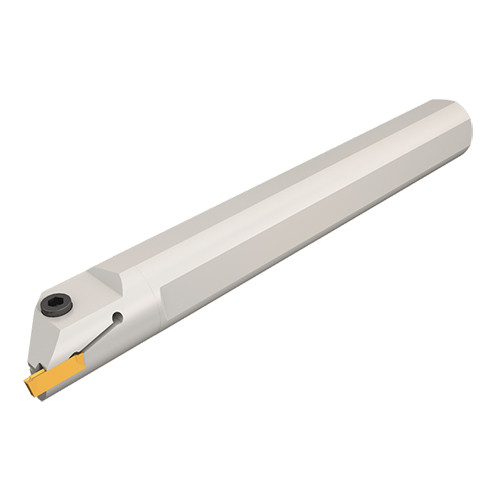

HFIR 20MC
Boring bars for internal grooving and turning, Dmin. 20 mm.

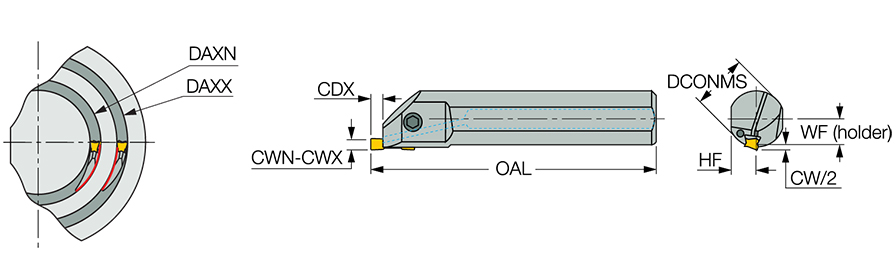

| Cutting Width Minimum (CWN) | 3 mm | Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | |
| Cutting Width Maximum (CWX) | 6 mm | Body Material | Steel |
| Cutting Depth Maximum (CDX) | 5 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 11.14 mm | Measurement Type | Metric |
| Overall Length (OAL) | 170 mm | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
Product Features
| Family Description | Boring bars for internal grooving and turning, Dmin. 20 mm. | FamilyName | HFIR/L-MC |

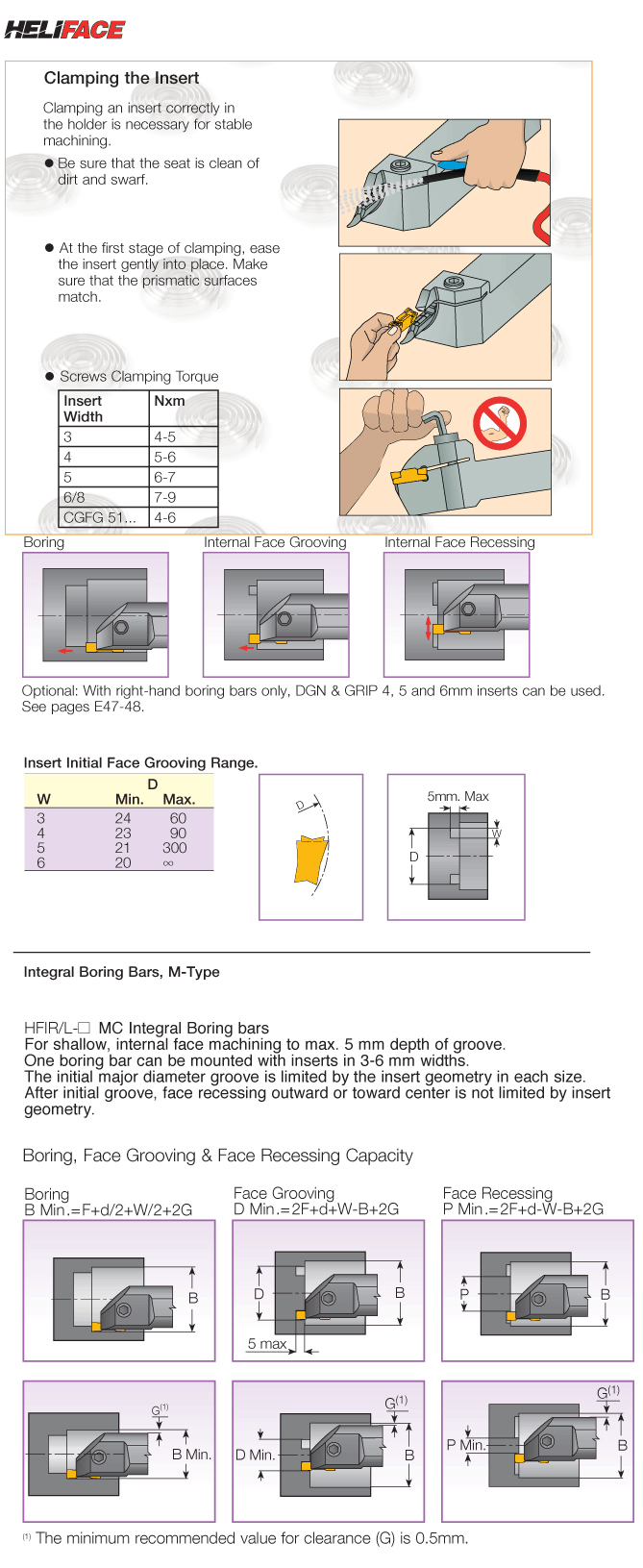

| Remarks | For insert clamping instructions, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.3720
Name
Groove/Turn Indexable Holders
FamilyName
HFIR/L-MC
BrandName
Iscar
