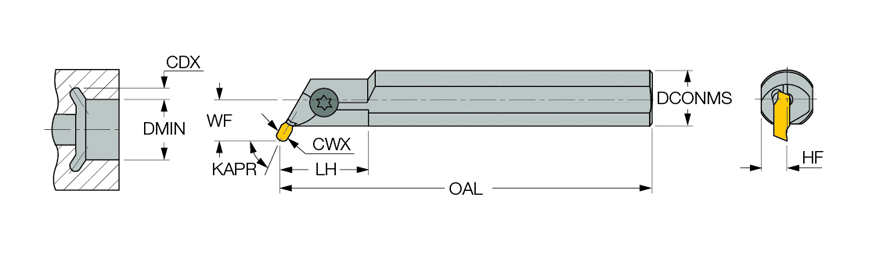

| Cutting Width Maximum (CWX) | 0.252″ | Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Depth Maximum (CDX) | 0.138″ | Application | | Int. Profiling | Int. Undercut & Turning | |
| Minimum Bore Diameter (DMIN) | 1″ | Body Material | Steel |
| Functional Width (WF) | 0.64″ | Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 2″ | Measurement Type | Inch |
| Overall Length (OAL) | 8″ | Unit | I |
Product Features

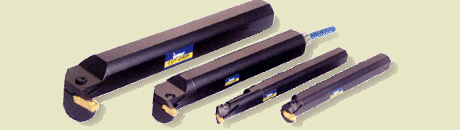

| Family Description | CUT-GRIP internal undercutting and turning bars. | FamilyName | GHIUR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.6336
Name

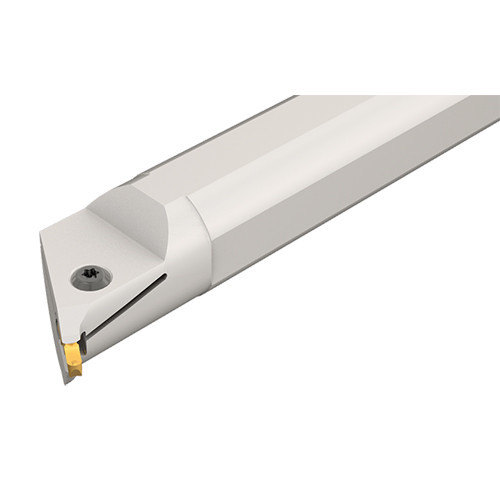

Groove/Turn Indexable Holders
FamilyName
GHIUR/L
BrandName
Iscar
Related Documentation
Single-ended inserts GMP for minimum bore diameter 12.5 mm, and double-ended GIPI for minimum bore diameter 20 mm. Available also with internal coolant for improved chip flow and tool life.
