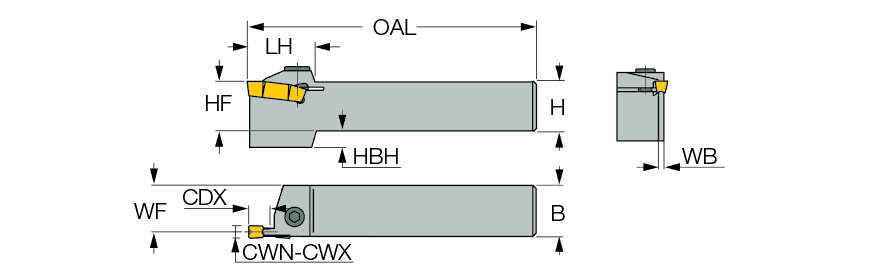

| Cutting Width Minimum (CWN) | 0.26″ | Overall Length (OAL) | 7″ |
| Cutting Width Maximum (CWX) | 0.327″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Cutting Depth Maximum (CDX) | 1″ | Body Material | Steel |
| Shank Height (H) | 1-1/2″ | Tool Type | Turn-Groove Tools |
| Shank Width (B) | 1-1/2″ | Measurement Type | Inch |
| Functional Width (WF) | 1.38″ | Unit | I |
| Head Length (LH) | 1.6″ |
Product Features
| Family Description | External tools for turning, grooving and parting. | FamilyName | GHDR/L (long pocket) |

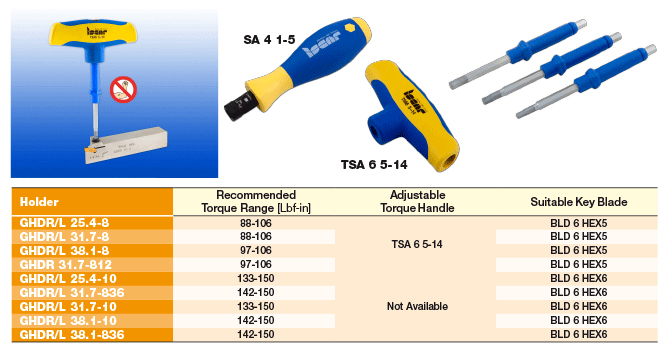

| Remarks | To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
4.0609
Name

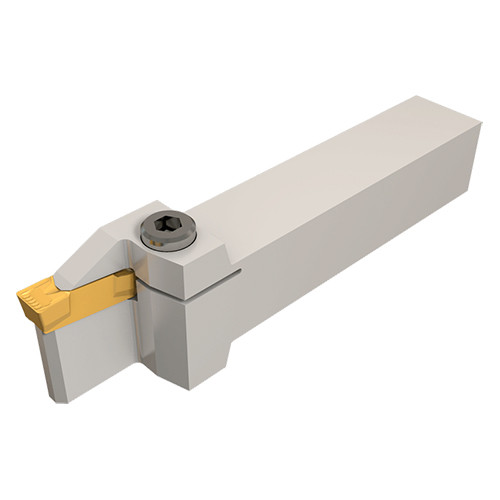

Groove/Turn Indexable Holders
FamilyName
GHDR/L (long pocket)
BrandName
Iscar
