TGIL 25C-4
Internal boring bars with coolant holes carrying TOP-GRIP utility grooving and turning inserts.

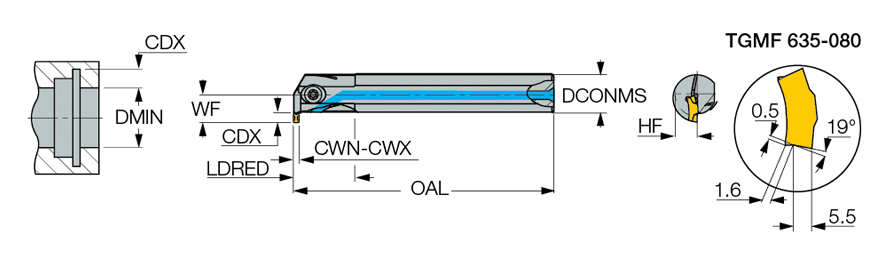

| Cutting Width Minimum (CWN) | 4 mm | Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Width Maximum (CWX) | 5 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | |
| Cutting Depth Maximum (CDX) | 8.5 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 32.5 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 19.5 mm | Measurement Type | Metric |
| Head Length (LH) | 40 mm | Unit | M |
| Overall Length (OAL) | 200 mm |
Product Features
| Family Description | Internal boring bars with coolant holes carrying TOP-GRIP utility grooving and turning inserts. | FamilyName | TGIR/L-C |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.6310
Name
Groove/Turn Indexable Holders
FamilyName
TGIR/L-C
BrandName
Iscar
Related Documentation
Bar holders with internal coolant supply for internal grooving and multi-directional turning machining with TOP-GRIP TGMF inserts. Excellent evacuation of chips. Minimum bore diameter 20.5 mm.
