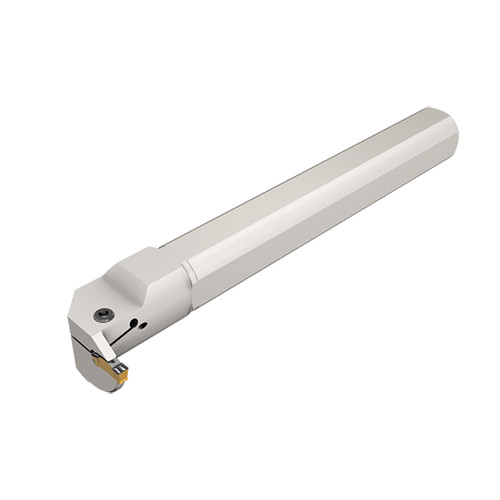

TGIR 25.4C-3

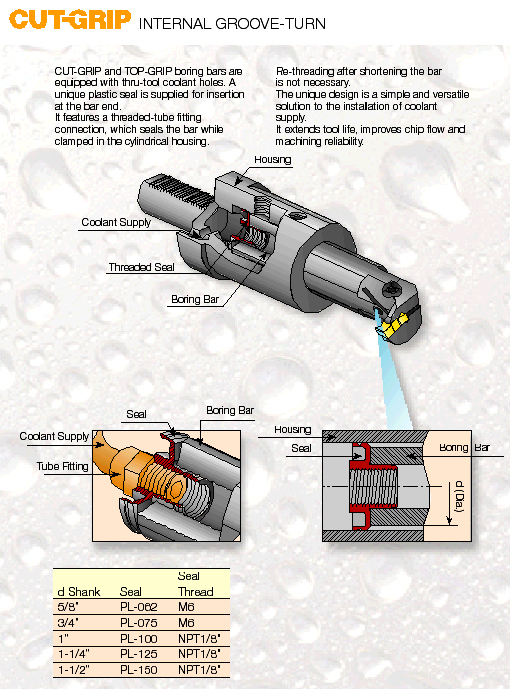

Internal boring bars with coolant holes carrying TOP-GRIP utility grooving and turning inserts.
| Cutting Width Minimum (CWN) | 0.118″ | Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Width Maximum (CWX) | 0.118″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | |
| Cutting Depth Maximum (CDX) | 0.31″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.26″ | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 0.74″ | Measurement Type | Inch |
| Head Length (LH) | 1.57″ | Unit | I |
| Overall Length (OAL) | 7.85″ |
Product Features
| Family Description | Internal boring bars with coolant holes carrying TOP-GRIP utility grooving and turning inserts. | FamilyName | TGIR/L-C |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
1.4308
Name
Groove/Turn Indexable Holders
FamilyName
TGIR/L-C
BrandName
Iscar
Related Documentation
Bar holders with internal coolant supply for internal grooving and multi-directional turning machining with TOP-GRIP TGMF inserts. Excellent evacuation of chips. Minimum bore diameter .81″.
