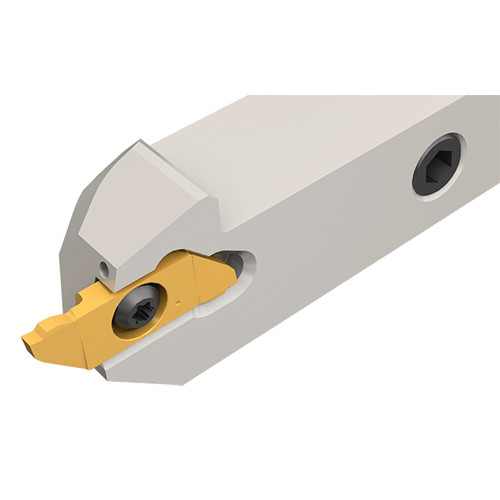

SCHL 12-22BF-JHP
Grooving and turning tools with high-pressure coolant channels with back and front clamping, for Swiss-type and automatic machines.

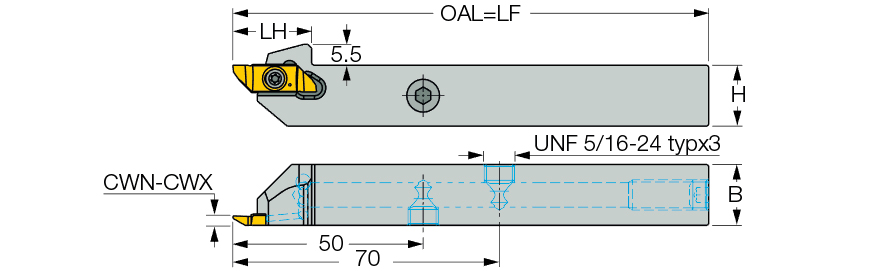

| Cutting Width Minimum (CWN) | 0.5 mm | Overall Length (OAL) | 125 mm |
| Cutting Width Maximum (CWX) | 2.5 mm | Application | | Ext. Back Turning | Ext. Grooving | Ext. Grooving & Turning | Ext. Turning | Parting | Threading (Ext.) Groove Turn T | |
| Cutting Depth Maximum (CDX) | 8 mm | Body Material | Steel |
| Shank Height (H) | 12 mm | Tool Type | Turn-Groove Tools |
| Shank Width (B) | 12 mm | Measurement Type | Metric |
| Head Length (LH) | 20.7 mm | Unit | M |
Product Features
| Family Description | Grooving and turning tools with high-pressure coolant channels with back and front clamping, for Swiss-type and automatic machines. | FamilyName | SCHR/L-22BF-JHP |
| Remarks | Note: Coolant ports of the left-hand tools are in the same position as those of the right-hand tools | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1610
Name
Groove/Turn Indexable Holders
FamilyName
SCHR/L-22BF-JHP
BrandName
Iscar
