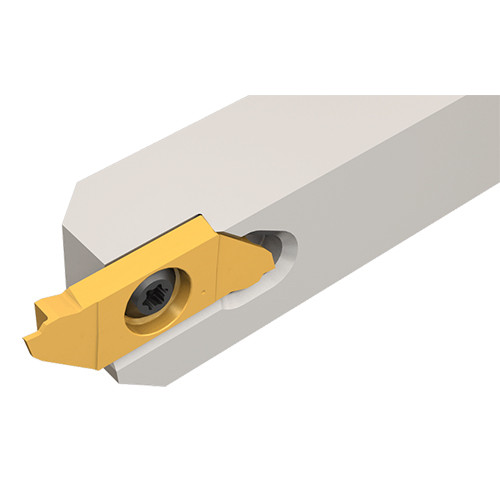

SCHR 12-22BF
Grooving and turning tools with back and front clamping for Swiss-type and automatic machines.

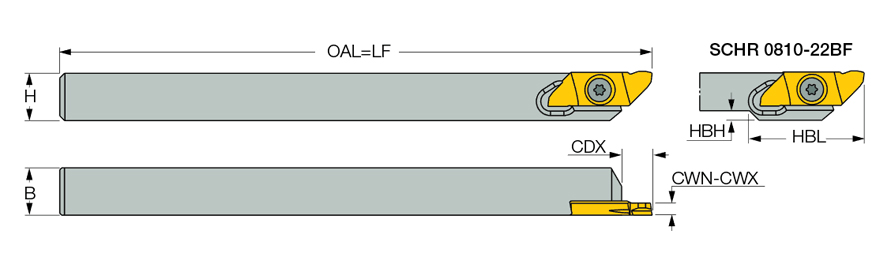

| Cutting Width Minimum (CWN) | 0.5 mm | Application | | Ext. Back Turning | Ext. Grooving | Ext. Grooving & Turning | Ext. Turning | Parting | Threading (Ext.) Groove Turn T | |
| Cutting Width Maximum (CWX) | 2.5 mm | Body Material | Steel |
| Cutting Depth Maximum (CDX) | 8 mm | Tool Type | Turn-Groove Tools |
| Shank Height (H) | 12 mm | Measurement Type | Metric |
| Shank Width (B) | 12 mm | Unit | M |
| Overall Length (OAL) | 125 mm |
Product Features
| Family Description | Grooving and turning tools with back and front clamping for Swiss-type and automatic machines. | FamilyName | SCHR/L-22BF |
| Remarks | Recommended tightening torque: 0.8-1.2 Nm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1630
Name
Groove/Turn Indexable Holders
FamilyName
SCHR/L-22BF
BrandName
Iscar
