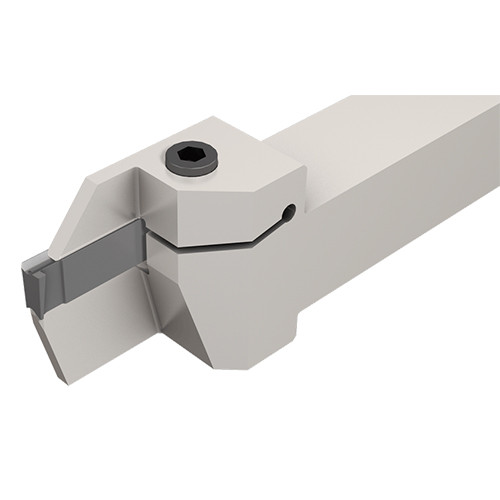

HLPGL 2525-12-A4.5-T30
Tools for L-type LPGIR/L inserts. Used for axial grooves inside radial grooves and for radial grooves inside axial grooves.

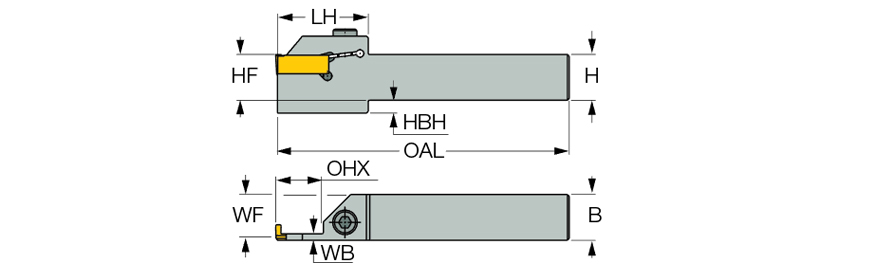

| Cutting Width Minimum (CWN) | 4.5 mm | Overall Length (OAL) | 160 mm |
| Cutting Width Maximum (CWX) | 4.5 mm | Application | | Face and Radial Grooving | Radial and Face Grooving | |
| Cutting Depth Maximum (CDX) | 30 mm | Body Material | Steel |
| Shank Height (H) | 25 mm | Tool Type | Indexable Turn & Groov Tools |
| Shank Width (B) | 25 mm | Measurement Type | Metric |
| Functional Width (WF) | 22.8 mm | Unit | M |
| Head Length (LH) | 55 mm |
Product Features
| Family Description | Tools for L-type LPGIR/L inserts. Used for axial grooves inside radial grooves and for radial grooves inside axial grooves. | FamilyName | HLPGR/L |

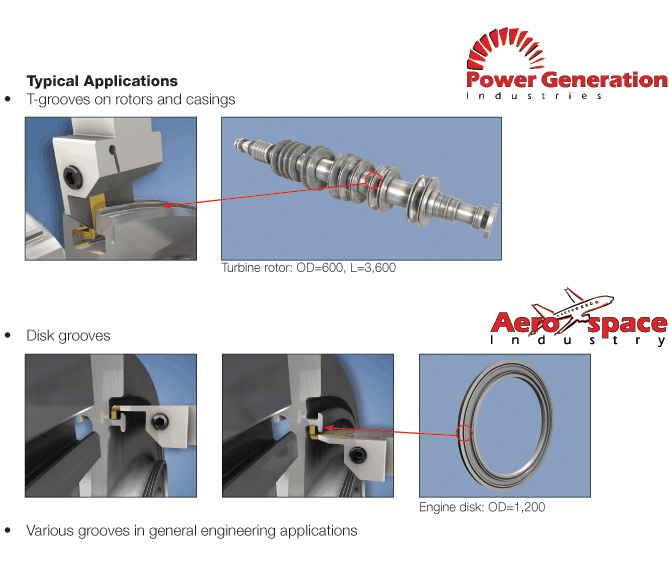

| Remarks | In case of face penetration prior to radial grooving, please check that the lower insert support is relieved from the groove's outer diameter For typical applications click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.7870
Name
Groove/Turn Indexable Holders
FamilyName
HLPGR/L
BrandName
Iscar
