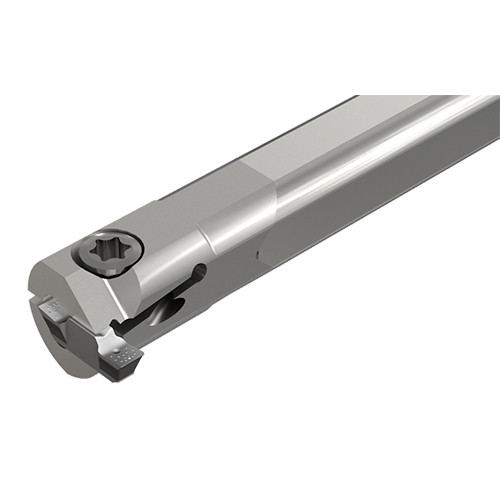

GEHIMR 10SC-13
Internal machining carbide bars with a coolant holes. Using GEMI and GEPI inserts in widths smaller than 1.9 mm (the insert is not fully supported).

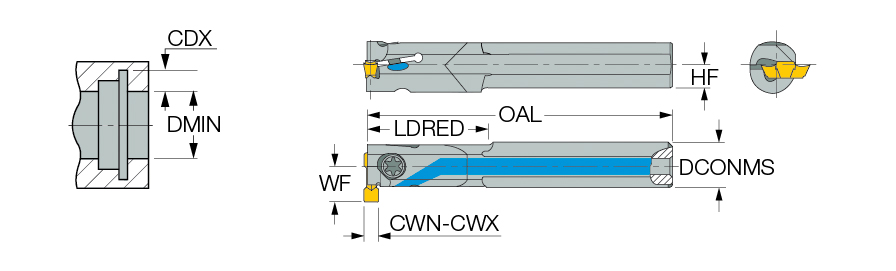

| Cutting Width Minimum (CWN) | 0.8 mm | Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Width Maximum (CWX) | 1.9 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Cutting Depth Maximum (CDX) | 2.5 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 12.5 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 7.6 mm | Measurement Type | Metric |
| Head Length (LH) | 30 mm | Unit | M |
| Overall Length (OAL) | 125 mm |
Product Features
| Family Description | Internal machining carbide bars with a coolant holes. Using GEMI and GEPI inserts in widths smaller than 1.9 mm (the insert is not fully supported). | FamilyName | GEHIMR/L-SC |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1420
Name
Groove/Turn Indexable Holders
FamilyName
GEHIMR/L-SC
BrandName
Iscar
