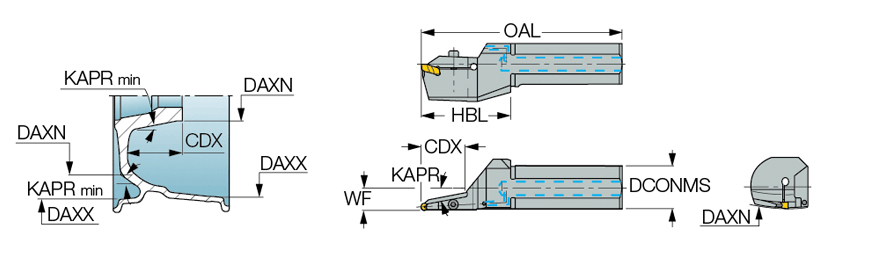

| Cutting Depth Maximum (CDX) | 40 mm | Application | | Int. Machining Aluminum Wheels | |
| Body Width (WB) | 4.07 mm | Axial Groove Outside Diameter Minimum (DAXN) | 300 mm |
| Minimum Bore Diameter (DMIN) | 300 mm | Axial Groove Outside Diameter Maximum (DAXX) | 360 mm |
| Functional Width (WF) | 19.3 mm | Body Material | Steel |
| Head Length (LH) | 80 mm | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 300 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Unit | M |
Product Features
| Family Description | 8° and 10° approach angle boring bars used for facing and internal machining. | FamilyName | GHIFR/L-A |
| Remarks | Upper jaw with hard coating to sustain chip deflection | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.6050
Name
Groove/Turn Indexable Holders
FamilyName
GHIFR/L-A
BrandName
Iscar
