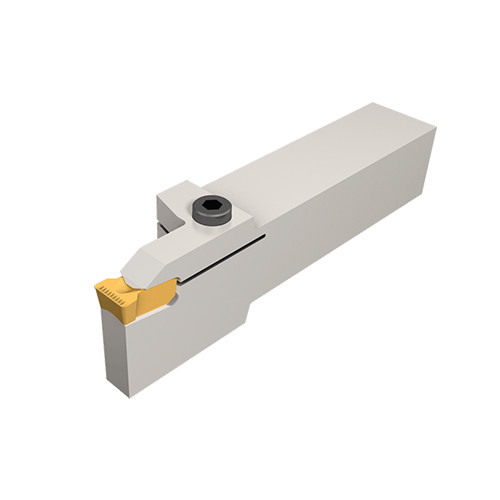

GHDN 4040-14T45
External tools for wide (12-17.4 mm) grooving inserts.

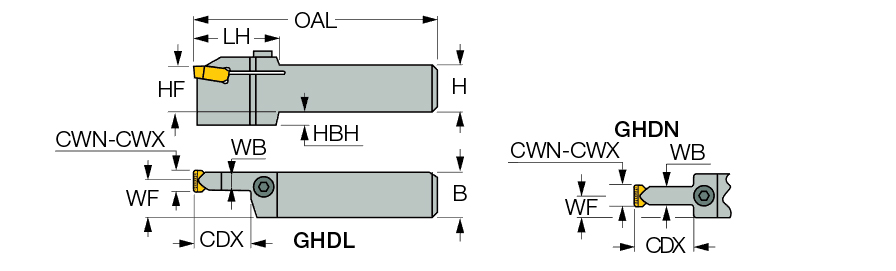

| Cutting Width Minimum (CWN) | 14.5 mm | Overall Length (OAL) | 170 mm |
| Cutting Width Maximum (CWX) | 17.4 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Pulley V Grooving | |
| Cutting Depth Maximum (CDX) | 45 mm | Body Material | Steel |
| Shank Height (H) | 40 mm | Tool Type | Wide Profiling Tools |
| Shank Width (B) | 40 mm | Measurement Type | Metric |
| Functional Width (WF) | 20 mm | Unit | M |
| Head Length (LH) | 55.5 mm |
Product Features
| Family Description | External tools for wide (12-17.4 mm) grooving inserts. | FamilyName | GHDR/L/N 12/14 |

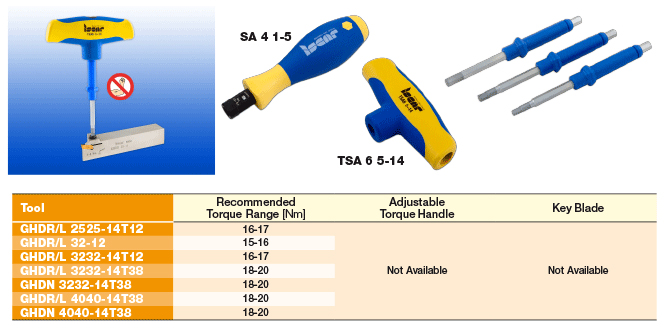

| Remarks | To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.8300
Name
Groove/Turn Indexable Holders
FamilyName
GHDR/L/N 12/14
BrandName
Iscar
