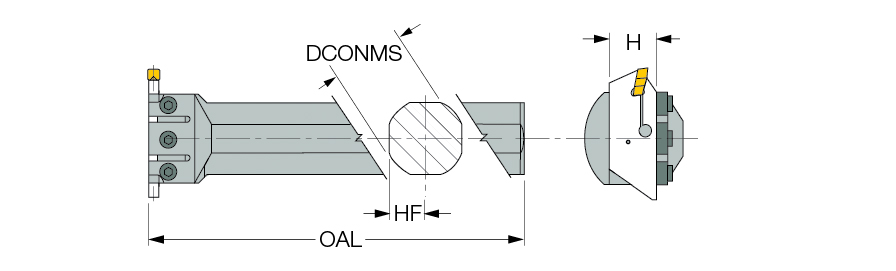

| Shank Height (H) | 32 mm | Body Material | Steel |
| Shank Width (B) | 58 mm | Tool Type | Round Shanks |
| Minimum Bore Diameter (DMIN) | 85 mm | Measurement Type | Metric |
| Overall Length (OAL) | 300 mm | Unit | M |
| Connection Diameter Machine Side (DCONMS) | 50 mm |
Product Features

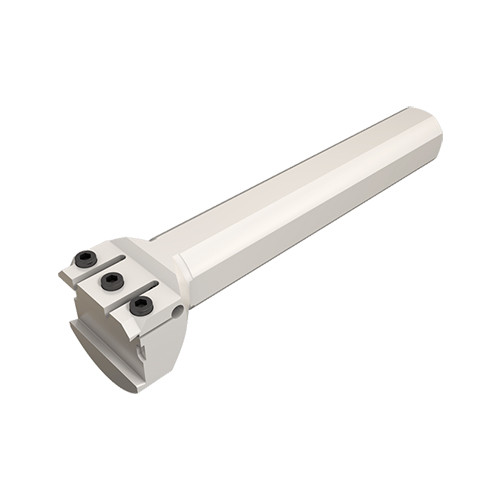

| Family Description | CUT-GRIP holders for internal grooving and turning blades, DMIN=85 mm. | FamilyName | GHIC-85 |
| Remarks | For both right and left hand applications | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
4.5740
Name
Groove/Turn Indexable Holders
FamilyName
GHIC-85
BrandName
Iscar
Related Documentation
