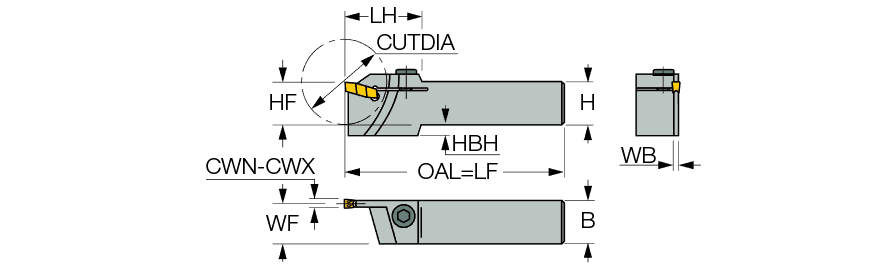

| Cutting Width Minimum (CWN) | 6 mm | Overall Length (OAL) | 170 mm |
| Cutting Width Maximum (CWX) | 8 mm | Application | | Ext. Back Turning | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | |
| Cutting Depth Maximum (CDX) | 32 mm | Body Material | Steel |
| Shank Height (H) | 32 mm | Tool Type | Turn-Groove Tools |
| Shank Width (B) | 32 mm | Measurement Type | Metric |
| Functional Width (WF) | 29.4 mm | Unit | M |
| Head Length (LH) | 50 mm |
Product Features

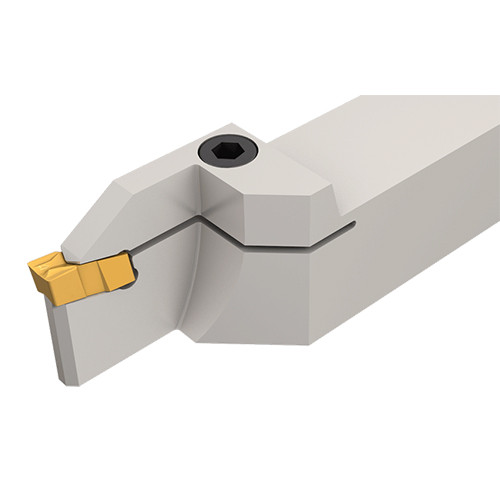

| Family Description | External holders for deep grooving and parting | FamilyName | GHGR/L |

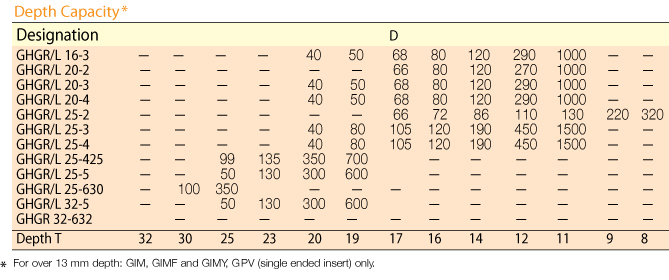

| Remarks | For machining depth over 13 mm, a single-ended insert is required (GIM, GIMF,GIMY,GIMT,GIMN) CDX for grooving depth depends on part diameter Dmax For grooving a part with a diameter larger than CUTDIA, click on More Info For using TIP and GIVR/L inserts, tool holder seat needs to be modified according to insert profile to ensure clearance For key blades and adjustable torque handles information (optional), click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.2150
Name
Groove/Turn Indexable Holders
FamilyName
GHGR/L
BrandName
Iscar
