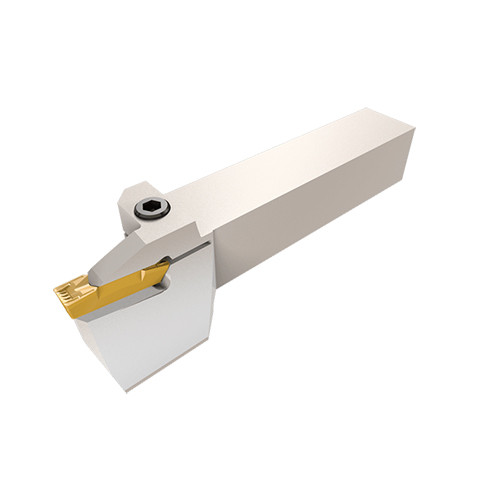

GHFG 32-63R-8
Holders for face grooving and turning Dmin. 50 mm. Can machine along shafts.

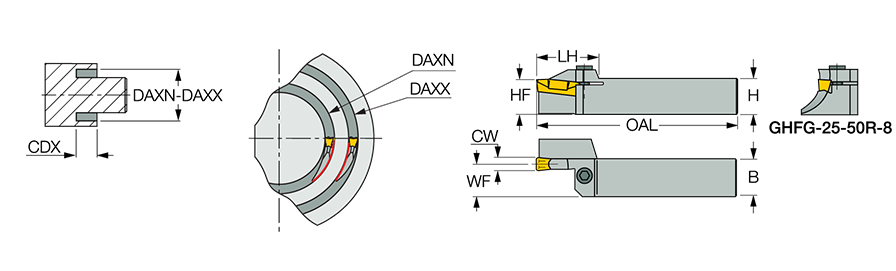

| Cutting Depth Maximum (CDX) | 25 mm | Axial Groove Outside Diameter Minimum (DAXN) | 63 mm |
| Shank Height (H) | 32 mm | Axial Groove Outside Diameter Maximum (DAXX) | 82 mm |
| Shank Width (B) | 32 mm | Body Material | Steel |
| Functional Width (WF) | 30 mm | Tool Type | Face Turning & grooving Tools |
| Head Length (LH) | 41 mm | Measurement Type | Metric |
| Overall Length (OAL) | 170 mm | Unit | M |
| Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
Product Features
| Family Description | Holders for face grooving and turning Dmin. 50 mm. Can machine along shafts. | FamilyName | GHFG-R/L-8 |
| Remarks | For insert clamping instructions, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.2690
Name
Groove/Turn Indexable Holders
FamilyName
GHFG-R/L-8
BrandName
Iscar
Related Documentation
GHFG integral toolholders for face grooving and turning in both directions. Initial grooving of major diameter ranges 50 to 80 mm with holders GHFG, inserts GIFG-8. 80 to 250 mm with GHFGR/L and GIF-8. Grooving depths up to 25 mm.
