GHIR 20SC-4
CUT-GRIP solid carbide bars with internal coolant holes, used for grooving and turning.

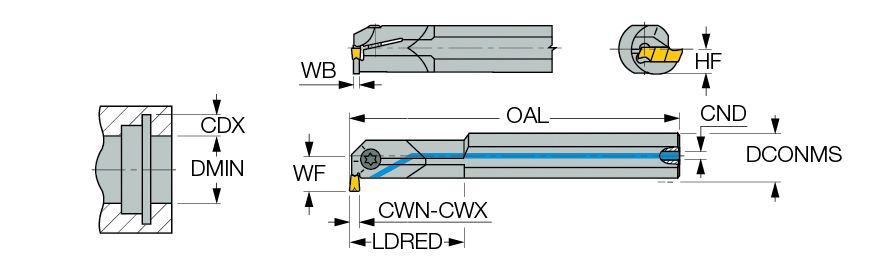

| Cutting Width Minimum (CWN) | 3 mm | Connection Diameter Machine Side (DCONMS) | 20 mm |
| Cutting Width Maximum (CWX) | 4.8 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Cutting Depth Maximum (CDX) | 4.5 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 20 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 14.5 mm | Measurement Type | Metric |
| Head Length (LH) | 60 mm | Unit | M |
| Overall Length (OAL) | 200 mm |
Product Features
| Family Description | CUT-GRIP solid carbide bars with internal coolant holes, used for grooving and turning. | FamilyName | GHIR/L-SC (W 2-4.8) |
| Remarks | Tool head is made of steel. When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.6940
Name
Groove/Turn Indexable Holders
FamilyName
GHIR/L-SC (W 2-4.8)
BrandName
Iscar
