HELIIL 38.1C-412

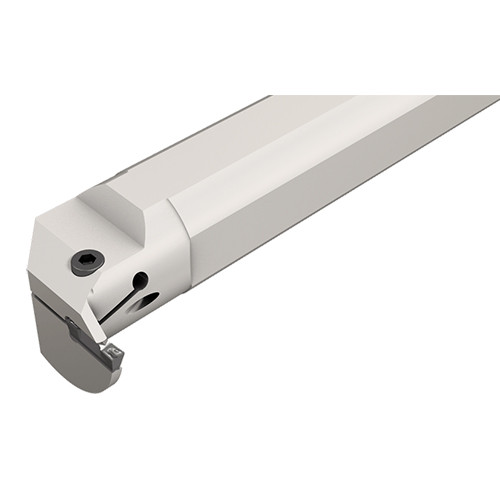

Grooving and turning bars with coolant holes for HELI-GRIP utility inserts

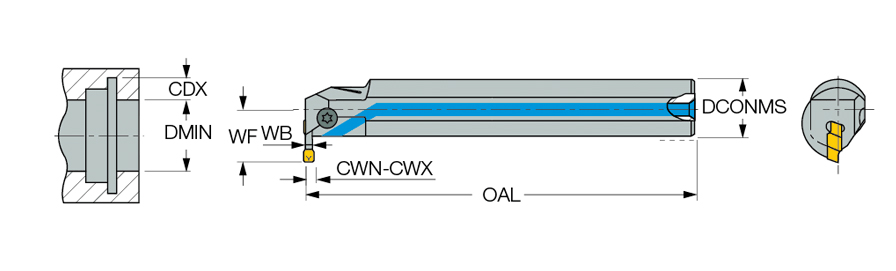

| Cutting Width Minimum (CWN) | 0.157″ | Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Cutting Width Maximum (CWX) | 0.187″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | |
| Cutting Depth Maximum (CDX) | 0.472″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 2.08″ | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 1.23″ | Measurement Type | Inch |
| Overall Length (OAL) | 10″ | Unit | I |
Product Features
| Family Description | Grooving and turning bars with coolant holes for HELI-GRIP utility inserts | FamilyName | HELIIR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
4.4533
Name
Groove/Turn Indexable Holders
FamilyName
HELIIR/L
BrandName
Iscar
