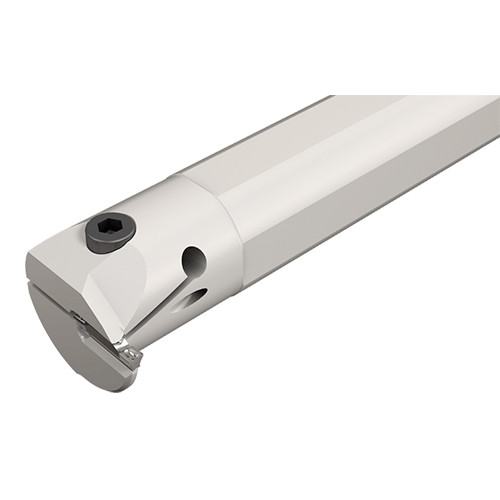

HELIIL 25C-410
Grooving and turning bars with coolant holes for HELI-GRIP utility inserts

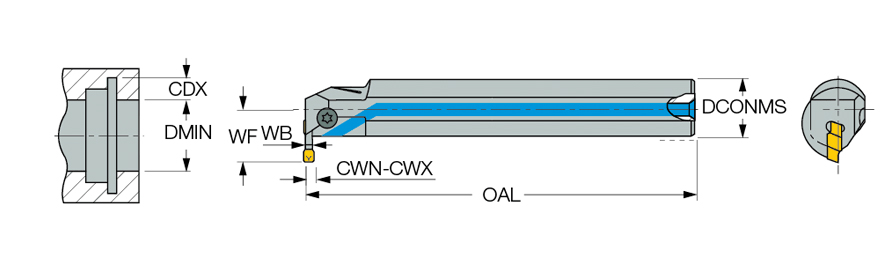

| Cutting Width Minimum (CWN) | 4 mm | Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Width Maximum (CWX) | 4.76 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | |
| Cutting Depth Maximum (CDX) | 10 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 43 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 22.7 mm | Measurement Type | Metric |
| Overall Length (OAL) | 160 mm | Unit | M |
Product Features
| Family Description | Grooving and turning bars with coolant holes for HELI-GRIP utility inserts | FamilyName | HELIIR/L |
| Remarks | DO-GRIP DGN inserts may be used only for grooving: DGN 4.. (Dmin=51 mm), DGN 5.. (Dmin=57 mm) and DGN 6.. (Dmin=62 mm). | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.5180
Name
Groove/Turn Indexable Holders
FamilyName
HELIIR/L
BrandName
Iscar
