HELIL 2525-4T25
HELI-GRIP external holders for turning, grooving & parting
| Cutting Width Minimum (CWN) | 4 mm | Overall Length (OAL) | 140 mm |
| Cutting Width Maximum (CWX) | 4.76 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Face Turning & grooving Tools |
| Functional Width (WF) | 23.4 mm | Measurement Type | Metric |
| Head Length (LH) | 42 mm | Unit | M |
Product Features
| Family Description | HELI-GRIP external holders for turning, grooving & parting | FamilyName | HELIR/L |

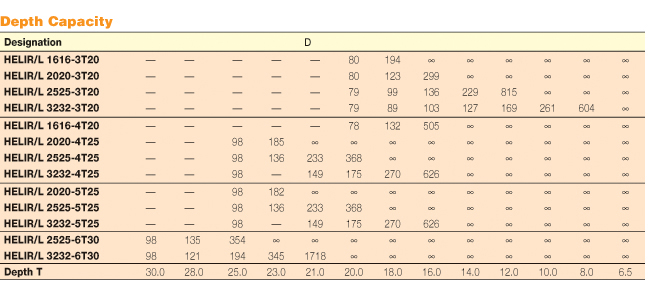

| Remarks | For tool type as shown in Fig.2, CDX for grooving is limited by the part diameter Dmax, for grooving depth capacity, click on More Info To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.6590
Name
Groove/Turn Indexable Holders
FamilyName
HELIR/L
BrandName
Iscar
