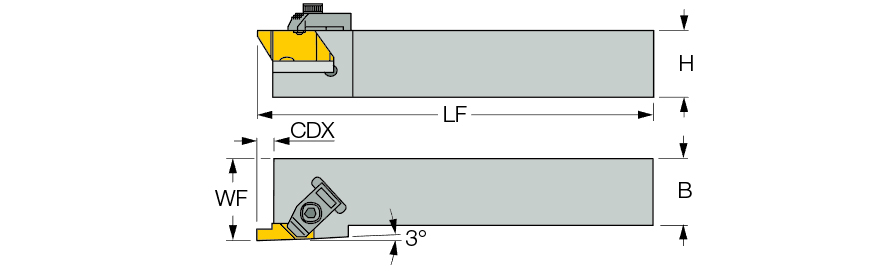

| Cutting Diameter (DC) | 0″ | Connection Diameter Machine Side (DCONMS) | 0″ |
| Cutting Depth Maximum (CDX) | 0.21″ | Application | | Ext. Grooving | Ext. Profiling | Threading (Ext.) Groove Turn T | |
| Shank Height (H) | 3/4″ | Body Material | Steel |
| Shank Width (B) | 3/4″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 1″ | Measurement Type | Inch |
| Head Length (LH) | 0″ | Unit | I |
| Overall Length (OAL) | 4-1/2″ |
Product Features
| Family Description | Tools for external grooving and threading inserts. | FamilyName | FLSR/L |
| COO | USA | BrandName | Iscar |
Shipping Info
Name

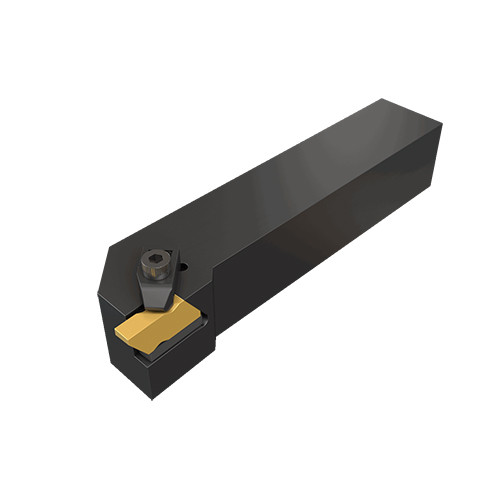

Groove/Turn Indexable Holders
FamilyName
FLSR/L
BrandName
Iscar
