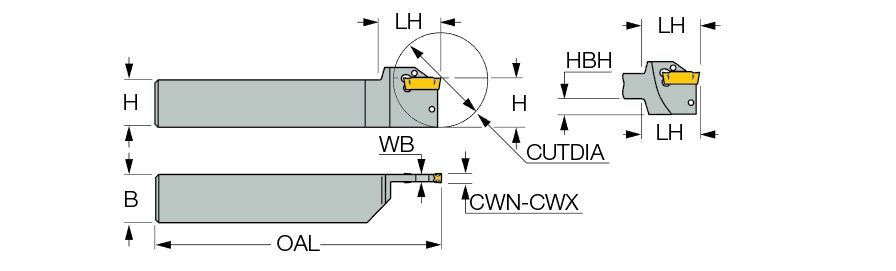

| Cutting Width Minimum (CWN) | 3 mm | Application | | Ext. Grooving | Parting | |
| Cutting Width Maximum (CWX) | 3.18 mm | Body Material | Steel |
| Shank Height (H) | 25 mm | Tool Type | Parting & Grooving Tools |
| Shank Width (B) | 25 mm | Measurement Type | Metric |
| Head Length (LH) | 29 mm | Unit | M |
| Overall Length (OAL) | 150 mm |
Product Features

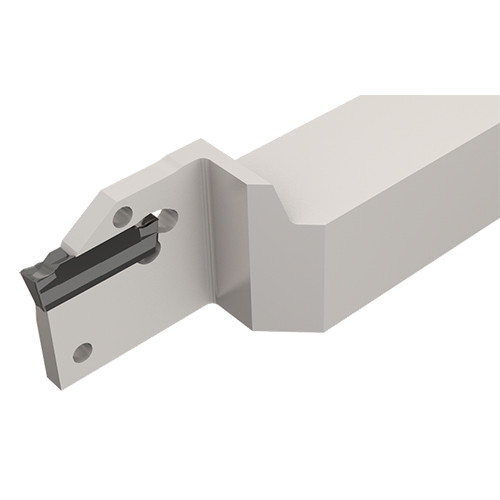

| Family Description | Integral shank parting and grooving tools | FamilyName | DGTR/L |
| Remarks | Insert limit is Tmax=18 mm. If deeper penetration is required, the insert should be modified into single-ended by the user DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified-click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.6540
Name
Groove/Turn Indexable Holders
FamilyName
DGTR/L
BrandName
Iscar
Related Documentation

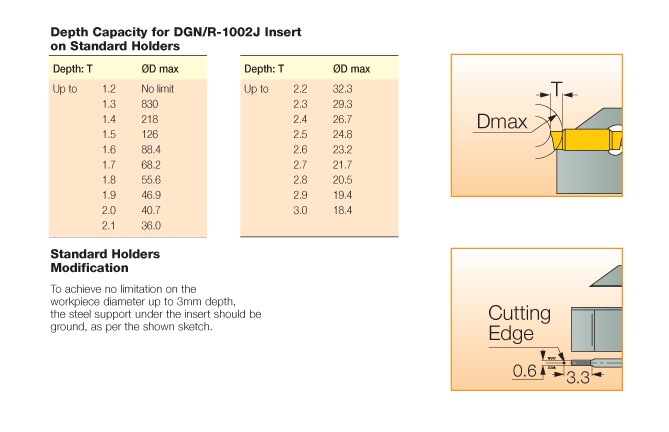

For DG.-1... inserts, modify holder pocket according to depth capacity table.
