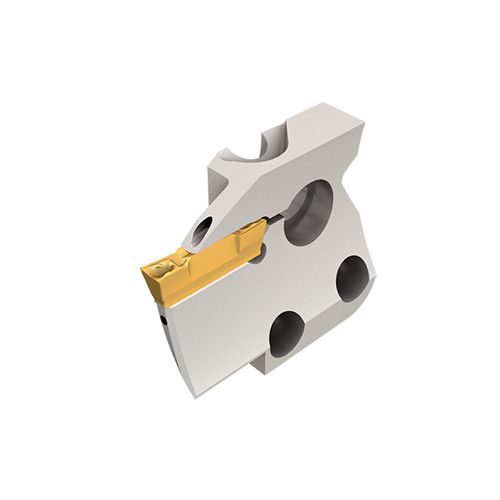

HFPAD 5L-200-T20-JHP
Adapters for face grooving and turning, for 40-3000mm diameter range. Part of the MODULAR-GRIP system

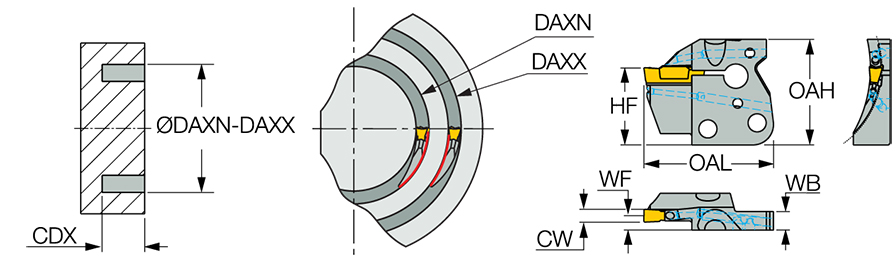

| Cutting Depth Maximum (CDX) | 20 mm | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Width (CW) | 5 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Left Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 800 mm | Functional Width (WF) | 4.5 mm |
| Axial Groove Outside Diameter Minimum (DAXN) | 200 mm | Measurement Type | Metric |
| Overall Length (OAL) | 45.5 mm | Unit | M |
Product Features
| Family Description | Adapters for face grooving and turning, for 40-3000mm diameter range. Part of the MODULAR-GRIP system | FamilyName | HFPAD-JHP |
| Remarks | WF(assembly)=WF(shank) + WF(adapter) HGN,GRIP,DGN inserts can be used only with right-hand adapters, HGPL inserts with left-hand adapters For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFPAD For insert clamping instructions, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0660
Name
Face Groove/Turn Indexable Holders
FamilyName
HFPAD-JHP
BrandName
Iscar
