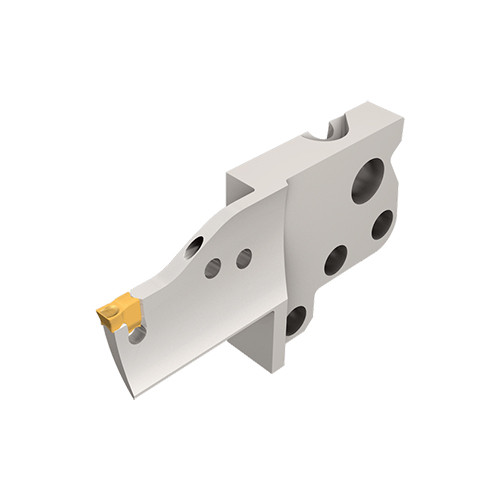

TNFPAD-XL 4R-35T35-JHP
Adapters for face grooving, for 35-312 mm diameter range. Part of the MODULAR-GRIP system.

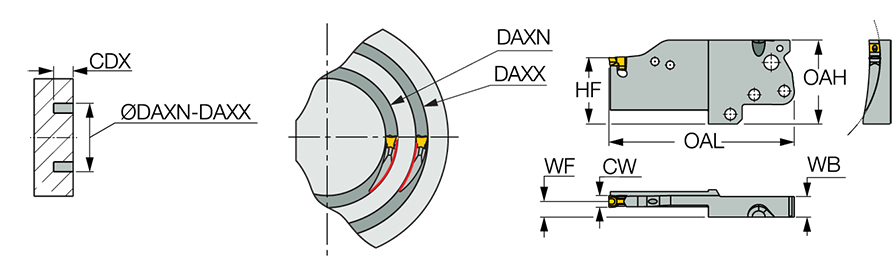

| Cutting Depth Maximum (CDX) | 35 mm | Application | | Face Grooving | Face Grooving Along Shaft | |
| Cutting Width (CW) | 4 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Right Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 53 mm | Functional Width (WF) | 8 mm |
| Axial Groove Outside Diameter Minimum (DAXN) | 35 mm | Measurement Type | Metric |
| Overall Length (OAL) | 80 mm | Unit | M |
Product Features
| Family Description | Adapters for face grooving, for 35-312 mm diameter range. Part of the MODULAR-GRIP system. | FamilyName | TNFPAD-XL-JHP |
| Remarks | WF(assembly)=WF(shank) + WF(adapter) TNF 4..5..6 inserts can be used with left and right hand adapters. For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges:IH-TNFPAD | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1410
Name
Face Groove/Turn Indexable Holders
FamilyName
TNFPAD-XL-JHP
BrandName
Iscar
