MIFHR 16C-15

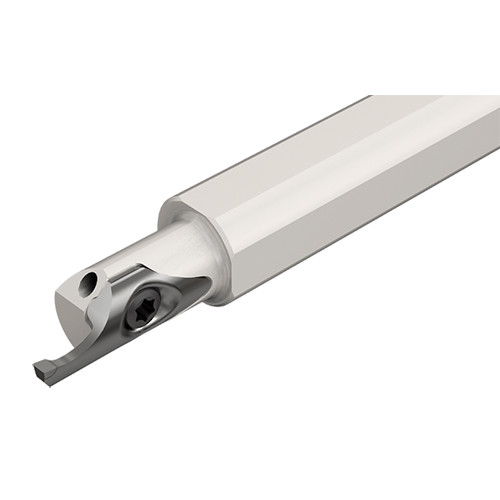

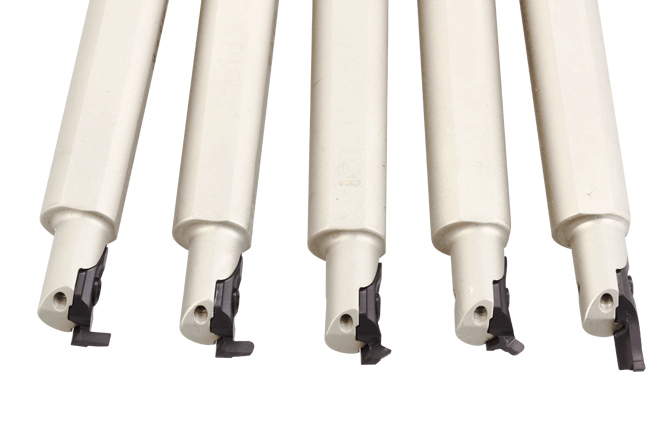

Bars for face and internal grooving undercutting and threading applications. They carry screw clamped MINCUT inserts into a long pocket, providing a very rigid clamping. The tools have coolant holes.

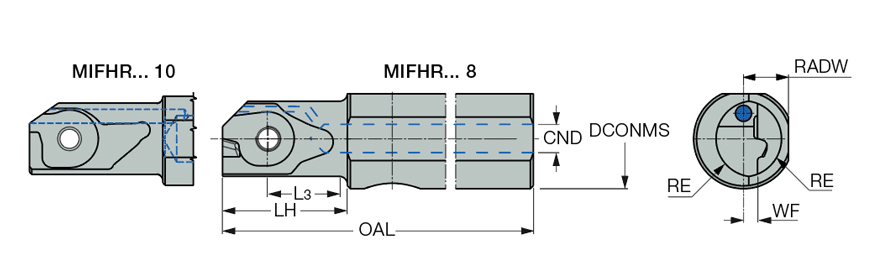

| Overall Length (OAL) | 100 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Functional Width (WF) | 7.5 mm |
| Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | Int. Face Grooving | Int. Face Recessing | Int. Groove & Turn | Int. Grooving | Int. Profiling | Int. Undercut & Turning | Threading (Int.) | | Measurement Type | Metric |
| Head Length (LH) | 19 mm | Unit | M |
| Tool Type | Indexable Turn & Groov Tools |
Product Features
| Family Description | Bars for face and internal grooving undercutting and threading applications. They carry screw clamped MINCUT inserts into a long pocket, providing a very rigid clamping. The tools have coolant holes. | FamilyName | MIFHR |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1620
Name
Face Groove/Turn Indexable Holders
FamilyName
MIFHR
BrandName
Iscar
