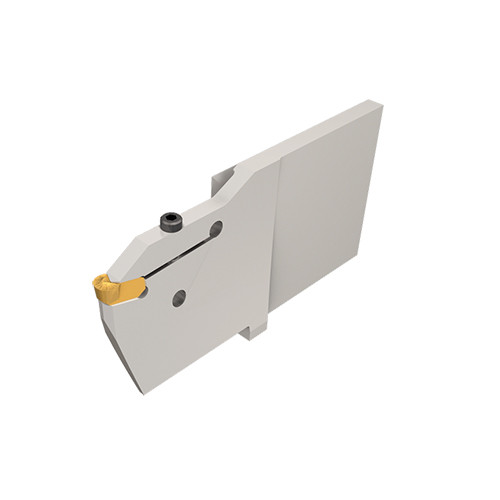

CGFG 51-320L-P8
Blades for face machining carrying 8 mm inserts, Dmin 180

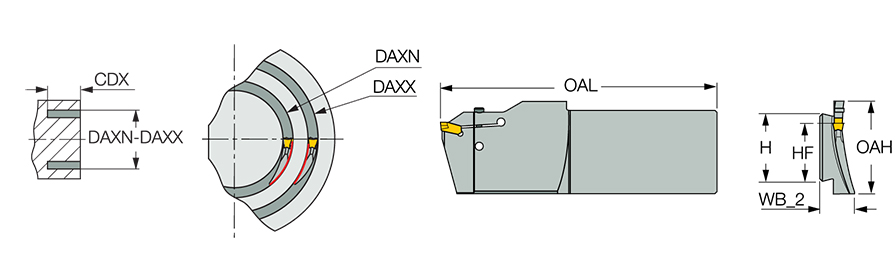

| Shank Height (H) | 52.6 mm | Overall Length (OAL) | 220 mm |
| Cutting Depth Maximum (CDX) | 90 mm | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Width (CW) | 8 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Left Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 440 mm | Measurement Type | Metric |
| Axial Groove Outside Diameter Minimum (DAXN) | 320 mm | Unit | M |
Product Features
| Family Description | Blades for face machining carrying 8 mm inserts, Dmin 180 | FamilyName | CGFG 51-P8 |

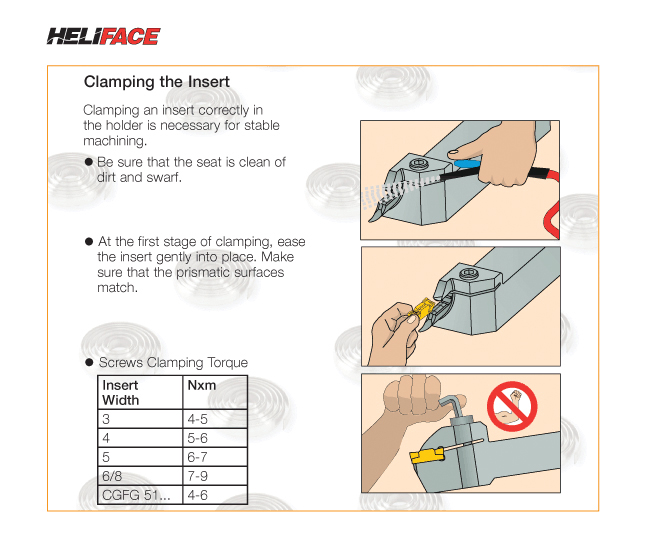

| Remarks | For insert clamping instructions, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.4700
Name
Face Groove/Turn Indexable Holders
FamilyName
CGFG 51-P8
BrandName
Iscar
Related Documentation
No limitation to widening of groove, either way, after initial grooving.
