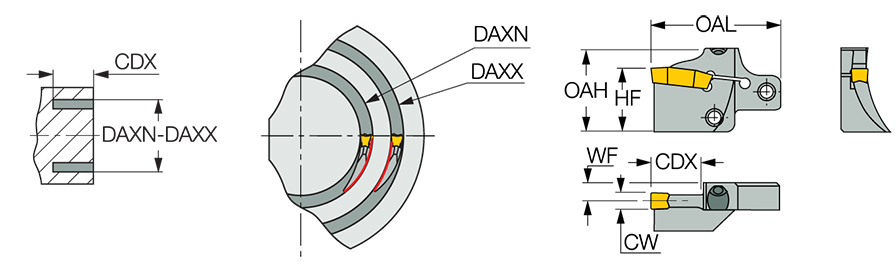

| Cutting Depth Maximum (CDX) | 25 mm | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Width (CW) | 8 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Direction (HAND) | Left Hand | Body Material | Steel |
| Axial Groove Outside Diameter Maximum (DAXX) | 510 mm | Functional Width (WF) | 9 mm |
| Axial Groove Outside Diameter Minimum (DAXN) | 155 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63.5 mm | Unit | M |
Product Features
| Family Description | Adapters for face machining, Dmin 80 mm. | FamilyName | GAFG-R/L-8 |
| Remarks | No limitation for widening the groove either way after initial grooving For user guide, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1310
Name

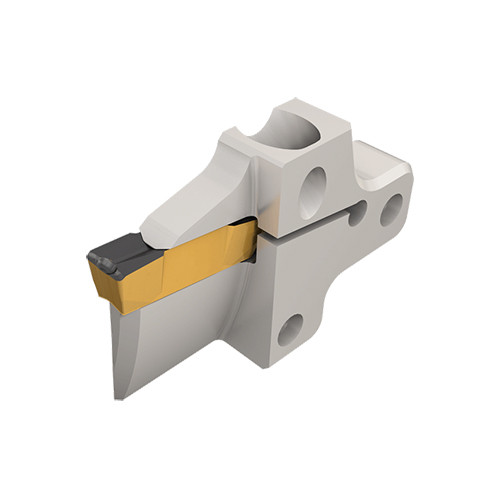

Face Groove/Turn Indexable Holders
FamilyName
GAFG-R/L-8
BrandName
Iscar
