HFAIL 180C-5T38DG
Adapters for internal face grooving and turning. Dmin 55 mm

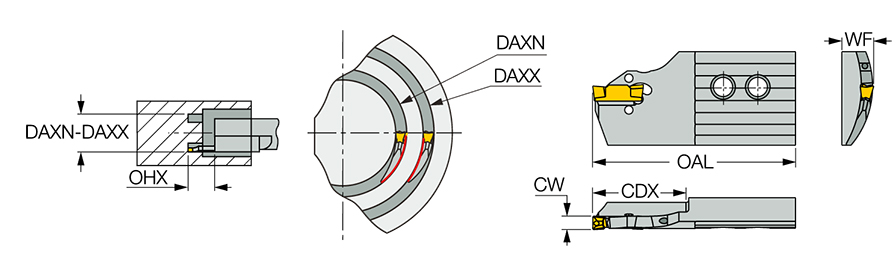

| Cutting Depth Maximum (CDX) | 38 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Width (CW) | 5 mm | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Functional Width (WF) | 11.9 mm |
| Axial Groove Outside Diameter Minimum (DAXN) | 180 mm | Measurement Type | Metric |
| Overall Length (OAL) | 76.5 mm | Unit | M |
| Application | | Face Grooving | Face Grooving & Turning | Int. Face Grooving | Int. Face Recessing | |
Product Features
| Family Description | Adapters for internal face grooving and turning. Dmin 55 mm | FamilyName | HFAIR/L-DG |
| Remarks | After initial groove, no limitation to widening groove outward or toward center DGN & GRIP inserts can be used only on right-hand tools, HFPR/L right-hand inserts on right-hand tools (same for left-hand), and HGPL inserts only on left-hand tools. For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFAIR | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1360
Name
Face Groove/Turn Indexable Holders
FamilyName
HFAIR/L-DG
BrandName
Iscar
