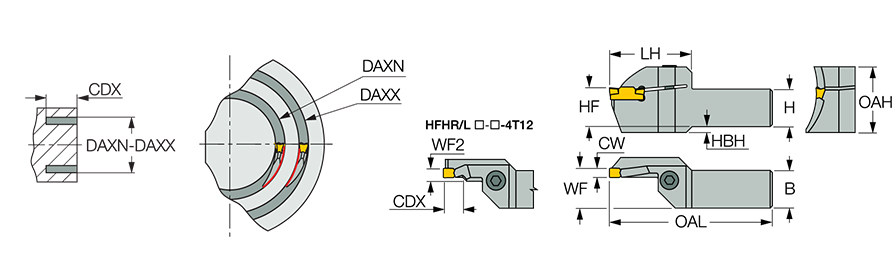

| Shank Width (B) | 25 mm | Overall Length (OAL) | 150 mm |
| Shank Height (H) | 25 mm | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Cutting Depth Maximum (CDX) | 25 mm | Head Length (LH) | 44 mm |
| Cutting Width (CW) | 4 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Width Maximum (CWX) | 4.8 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 4 mm | Functional Width (WF) | 25.6 mm |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Axial Groove Outside Diameter Maximum (DAXX) | 800 mm | Unit | M |
| Axial Groove Outside Diameter Minimum (DAXN) | 240 mm |
Product Features
| Family Description | Integral holders for facing | FamilyName | HFHR/L-4T |
| Remarks | For insert clamping instructions, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.7030
Name

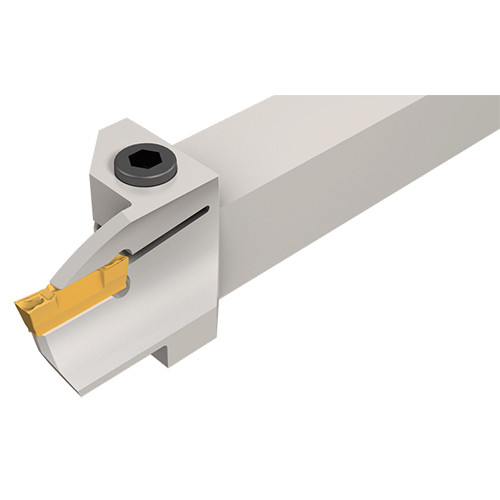

Face Groove/Turn Indexable Holders
FamilyName
HFHR/L-4T
BrandName
Iscar
Related Documentation

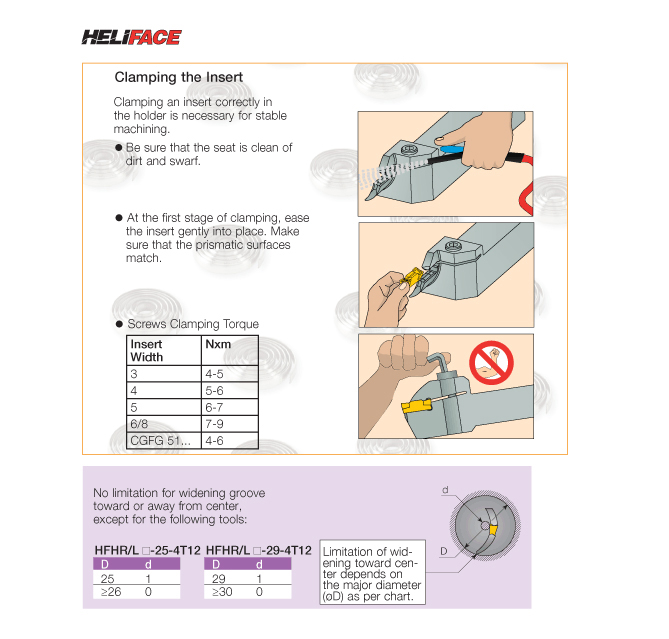

No limitation for widening groove outward/toward center, except for the tools above. The inserts DGN 4003 and GRIP 4004Y can be used with right-hand toolholder only.
