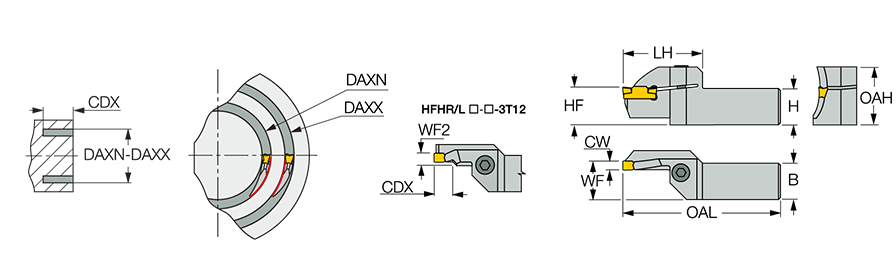

| Shank Width (B) | 25 mm | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Shank Height (H) | 25 mm | Head Length (LH) | 38 mm |
| Cutting Depth Maximum (CDX) | 12 mm | Tool Type | Face Turning & grooving Tools |
| Cutting Width (CW) | 3 mm | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 25.5 mm |
| Axial Groove Outside Diameter Maximum (DAXX) | 48 mm | Measurement Type | Metric |
| Axial Groove Outside Diameter Minimum (DAXN) | 38 mm | Unit | M |
| Overall Length (OAL) | 150 mm |
Product Features
| Family Description | Integral holders for facing | FamilyName | HFHR/L-3T |
| Remarks | For insert clamping instructions, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.7240
Name

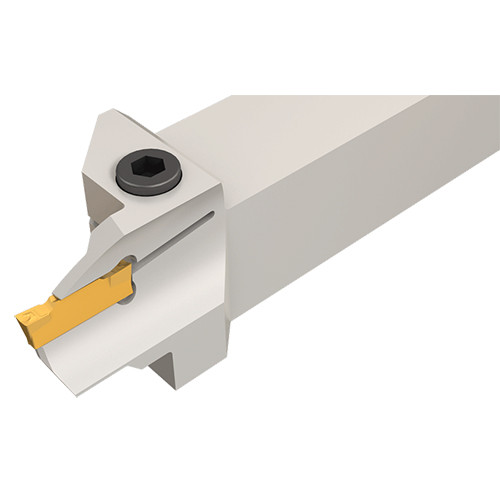

Face Groove/Turn Indexable Holders
FamilyName
HFHR/L-3T
BrandName
Iscar

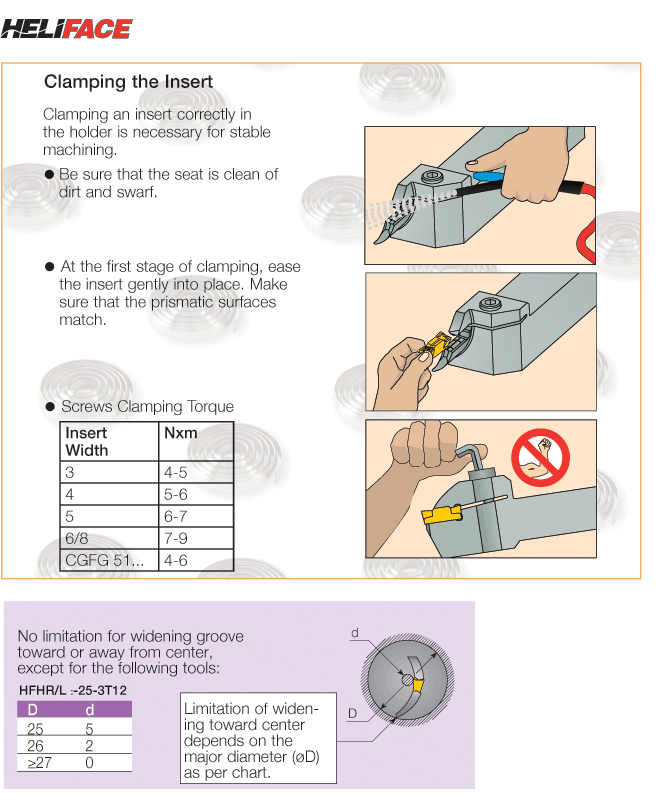

Related Documentation
No limitation for widening groove outward/toward center, except for the tools above.
