PCHPLS 20-34

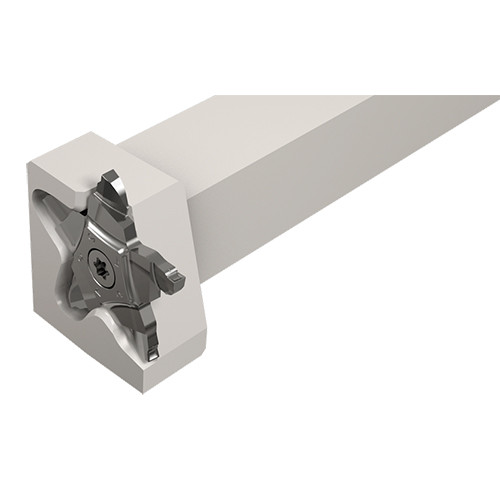

Perpendicular shank tools that mount pentagonal inserts for machining next to long central shaft. The inserts are positioned nearly perpendicular to the shanks, slightly tilted to enable machining next to the long central shafts.

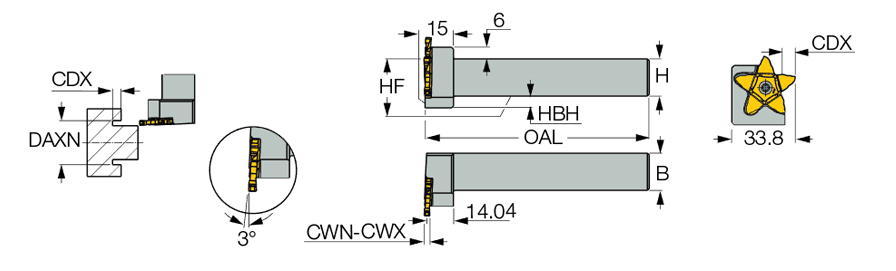

| Shank Width (B) | 20 mm | Overall Length (OAL) | 120 mm |
| Shank Height (H) | 20 mm | Application | | Face Grooving | Face Grooving Along Shaft | |
| Cutting Depth Maximum (CDX) | 5 mm | Tool Type | Face Grooving Tools |
| Cutting Width Maximum (CWX) | 4 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 2.39 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand | Unit | M |
Product Features
| Family Description | Perpendicular shank tools that mount pentagonal inserts for machining next to long central shaft. The inserts are positioned nearly perpendicular to the shanks, slightly tilted to enable machining next to the long central shafts. | FamilyName | PCHPRS/LS |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.4530
Name
Face Groove/Turn Indexable Holders
FamilyName
PCHPRS/LS
BrandName
Iscar
